Electronic Component Product Description
Product Description

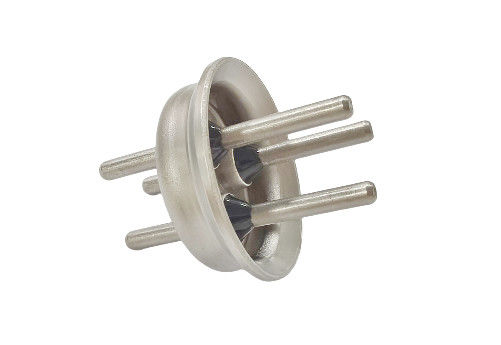

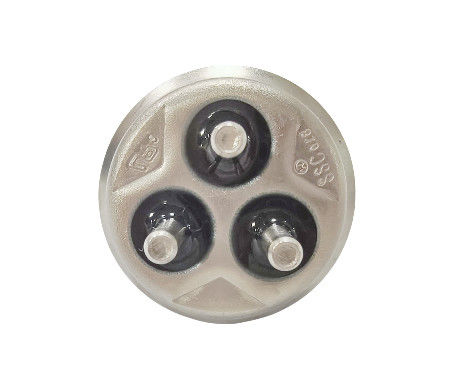

Our state-of-the-art electronic component is meticulously engineered to fulfill the exacting demands of a diverse range of electrical applications. It functions as an indispensable connection nexus, facilitating seamless and reliable power transmission as well as precise signal transfer. Fabricated with the utmost precision and advanced manufacturing techniques, this component stands as a premium choice, catering not only to seasoned professionals in the electrical field but also to enthusiastic DIY hobbyists eager to make their innovative projects come to life. Its robust design and high-quality construction ensure longevity and consistent performance, even under challenging operating conditions.
Features
|
Feature
|
Description
|
|
Material Quality
|
- Cap: High-grade SPC, resists humidity, temperature changes and chemicals, protecting inside parts. - Pin: SUH446 alloy with 2:1 copper core, conducts electricity well, reduces energy loss. - Glass: ELAN #48 glass, provides good insulation, prevents leakage, boosts safety.
|
|
Spacing Specifications
|
- Thru Air: Outside and inside min. spacing is 3.2 (usually mm, check docs or ask us). Keeps signals stable, avoids electrical interference. - O'Surface: Outside and inside min. spacing is 4.8, meets strict safety and performance rules.
|
|
UL Compliance
|
Meets UL specs for up to 2000VA and 300V, can be used widely and safely in electrical setups.
|
|
Mounting Convenience
|
Recommended mounting hole diameter 28.58 - 28.83, makes installation easy and fast.
|
Technical Parameters
- Minimum Spacing (Thru Air): Outside 3.2, Inside 3.2
- Minimum Spacing (O'Surface): Outside 4.8, Inside 4.8
- Power Compatibility: Up to 2000VA
- Voltage Compatibility: Up to 300 Volts
- Mounting Hole Diameter: O28.58 ~ O28.83
- Operating Temperature Range: -20°C to +80°C (works well in different climates)
- Insulation Resistance: ≥ 1000 MΩ (at 500V DC, adds to safety)
Applications
This versatile component is widely used in household appliances. Key in air conditioners, it links electrical parts for smooth cooling and heating. Also useful in fans for stable power and motor control, in heaters for reliable heating, and in control panels for signal transmission.
Customization
We know projects vary. So we offer broad customization. Need special pin config or adjusted spacing? Our skilled team is ready to create the perfect fit for your project.
Support and Services
Our friendly customer support team is here 24/7. From pre-purchase advice to after-sales help, we ensure you're satisfied. Got installation or use issues? Just call, email or chat with us. We'll solve problems pronto.
Packing and Shipping
We care about shipping. Each component is wrapped in anti-static and shock-absorbent materials, then boxed with extra cushioning. We have various shipping options to meet your deadline and budget needs.
FAQ
- Q: What is the unit of the spacing measurements?
A: The unit is typically millimeters, but it's always best to refer to the accompanying documentation or contact our support team for confirmation.
- Q: Can I order a sample before making a bulk purchase?
A: Yes, we encourage customers to request samples to test the product's suitability for their projects. Please contact our sales department for sample ordering details.
- Q: How long does it take to receive a customized order?
A: The production time for customized orders varies depending on the complexity of the modifications. Our sales team will provide you with an estimated lead time once we have all the details of your customization request.
- Q: What is the warranty period for this product?
A: We offer a standard 1-year warranty on all our products. During this period, if you encounter any manufacturing defects or performance issues, we will replace or repair the component free of charge.
- Q: Are there any installation guides or tutorials available?
A: Yes, we provide detailed installation guides and video tutorials on our website. These resources will walk you through the installation process step by step, making it easy for you to get started.
