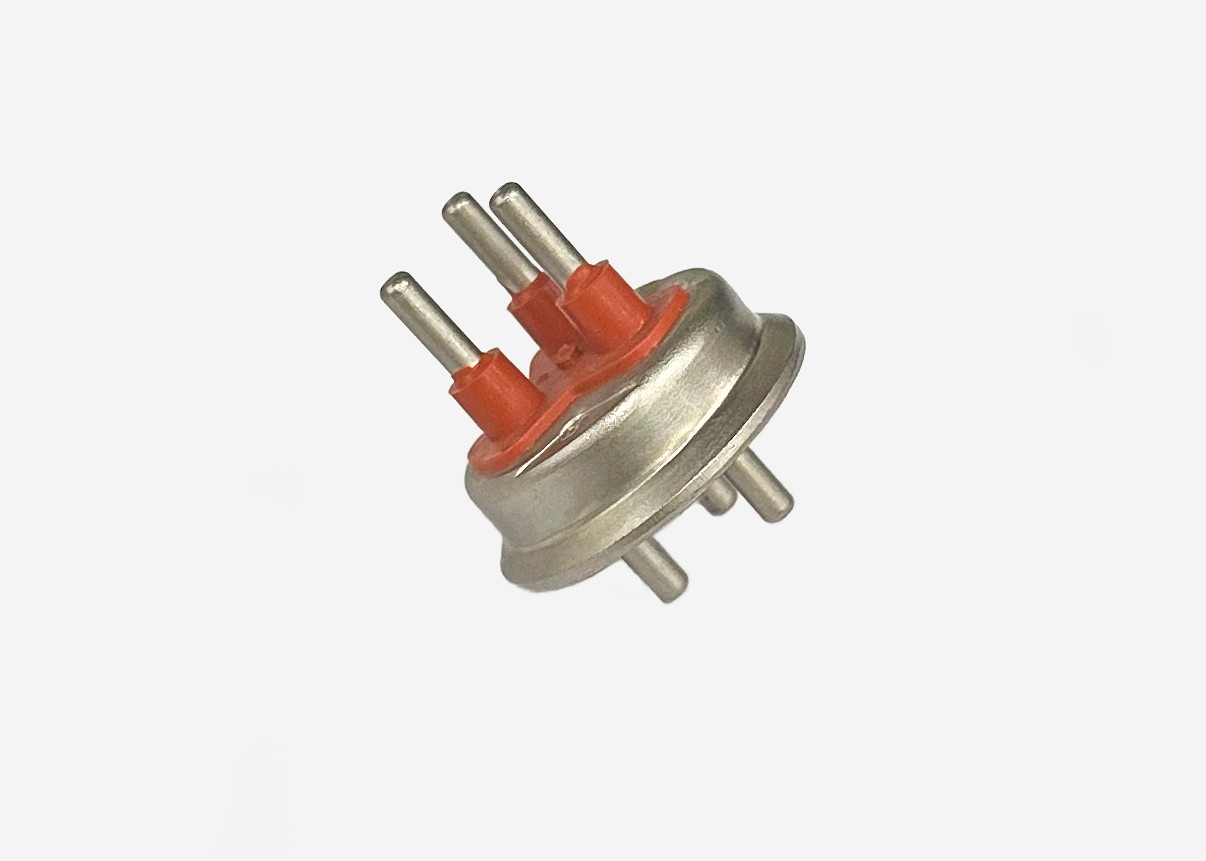

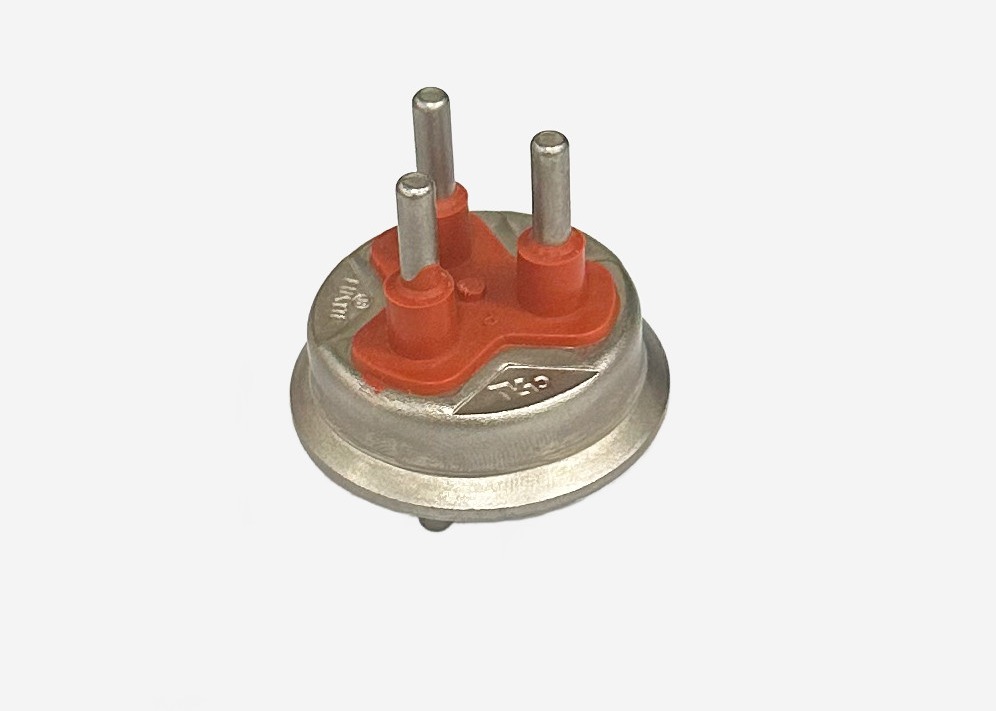

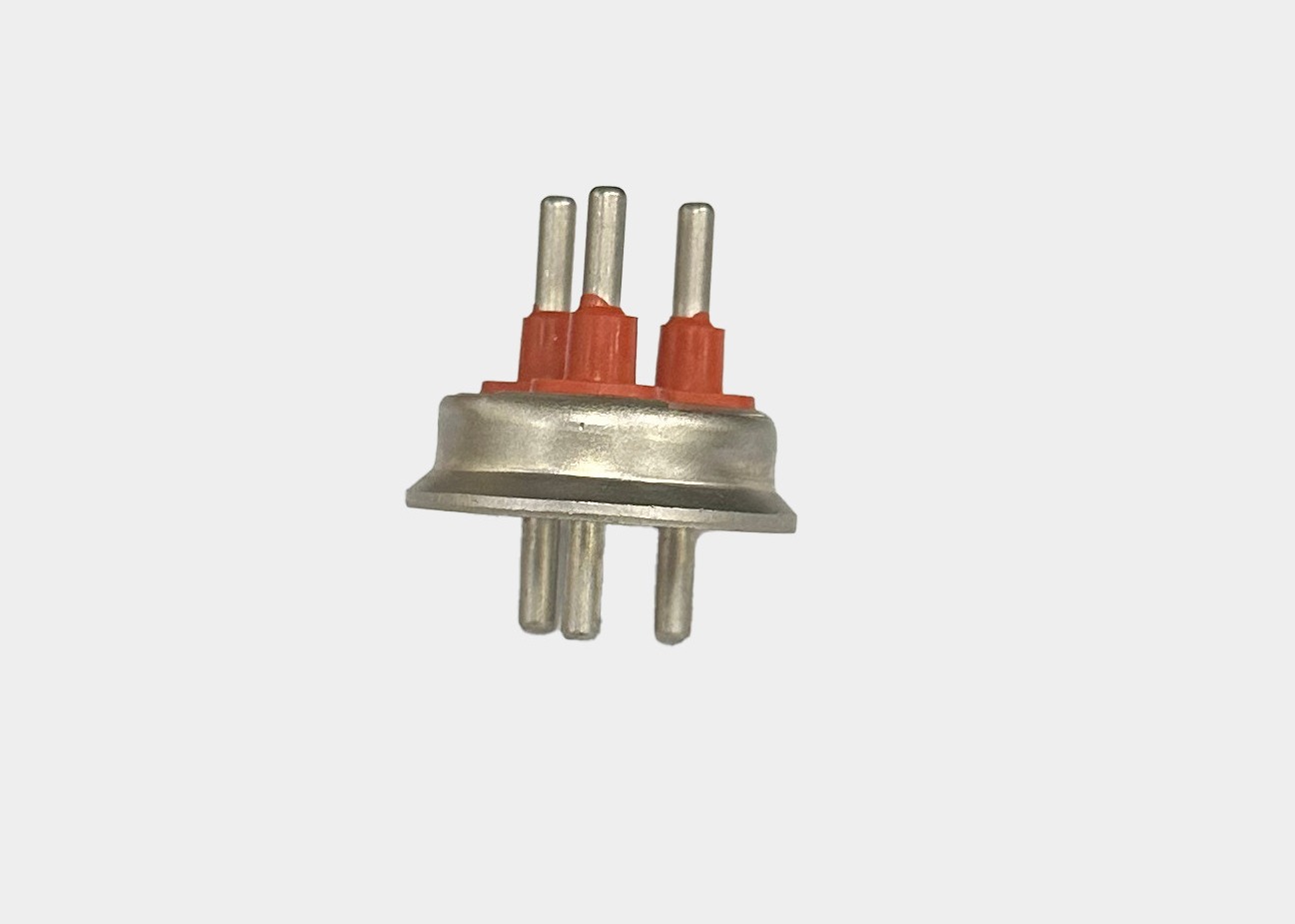

UL Fridge Compressor Terminals 20A With Electroless Nickel Surface Treatment

20A-30A Circlip/Welding Fridge Compressor Connectors With Electroless Nickel Surface Treatment

Product Description:

We are capable of customizing various sintered seal terminals according to the customers’ needs. The performance parameters of those we manufacture are listed below:

1. Material: 45 Steel

2. Hi-pot Test: Voltage of 3000V and leakage current of no more than 0.5MA

3. Insulation Resistance: Test voltage of 1000V, insulation resistance of greater than 1000MΩ

4. Leak Test: 4MPa nitrogen pressure with no leakage

5. Burst Test: 5MPa with no leakage

6. Temperature Range: Operate at a range from -70°C to 300°C

Features:

The sintered seal terminal is mainly used for a specific purpose, which is to work in the 72V-810V compressor of automobile air conditioning. It has multiple roles, primarily to offer sealing, insulation, voltage and pressure resistance, electrical connection as well as water and oil spotting.

These features make the sintered seal terminal an ideal solution for both existing and new automobile air conditioning units that need an efficient and reliable way of protecting the compressor.

Technical Parameters:

Applications:

All of our products are environmentally-friendly and are completed using the electroless nickel plating method, with a coating thickness of 3-5 microns. Our environmentally-friendly nickel coating does not contain any harmful substances such as mercury, lead, cadmium, and hexavalent chromium, and meet EU standards. This is verified via SGS environmental testing reports.

The electroless nickel plating method gives our products the role of electrical connections.

Customization:

Product Name: Fridge Compressor Terminals

• Brand Name: SSCore
• Compressor Connectors Terminals, Refrigerator Compressor Terminals, Fridge Compressors Contacts
• Place of Origin: ShenZheng
• Certification: UL
• Minimum Order Quantity: 5 pcs
• Price: 10 - 40 $
• Packaging Details: Cato packing
• Delivery Time: 7 - 14 work days
• Payment Terms: L/C, D/A, T/T, D/P
• Supply Ability: 50w pieces a month
• Current Rating: 20A - 30A
• Voltage: 200V-400V
• Pin: 4J28
• Operating Temperature: -70°C To +300°C

Support and Services:

We provide technical support and service for Fridge Compressor Terminals. Our team of experts can help you with any problem you may encounter. We have a wide range of resources available to help you with your Fridge Compressor Terminals, including:

• Troubleshooting guides
• Installation instructions
• Replacement parts
• Accessories
• Warranty information

We are committed to providing the best possible service for our customers. If you need assistance with your Fridge Compressor Terminals, please do not hesitate to contact us.
