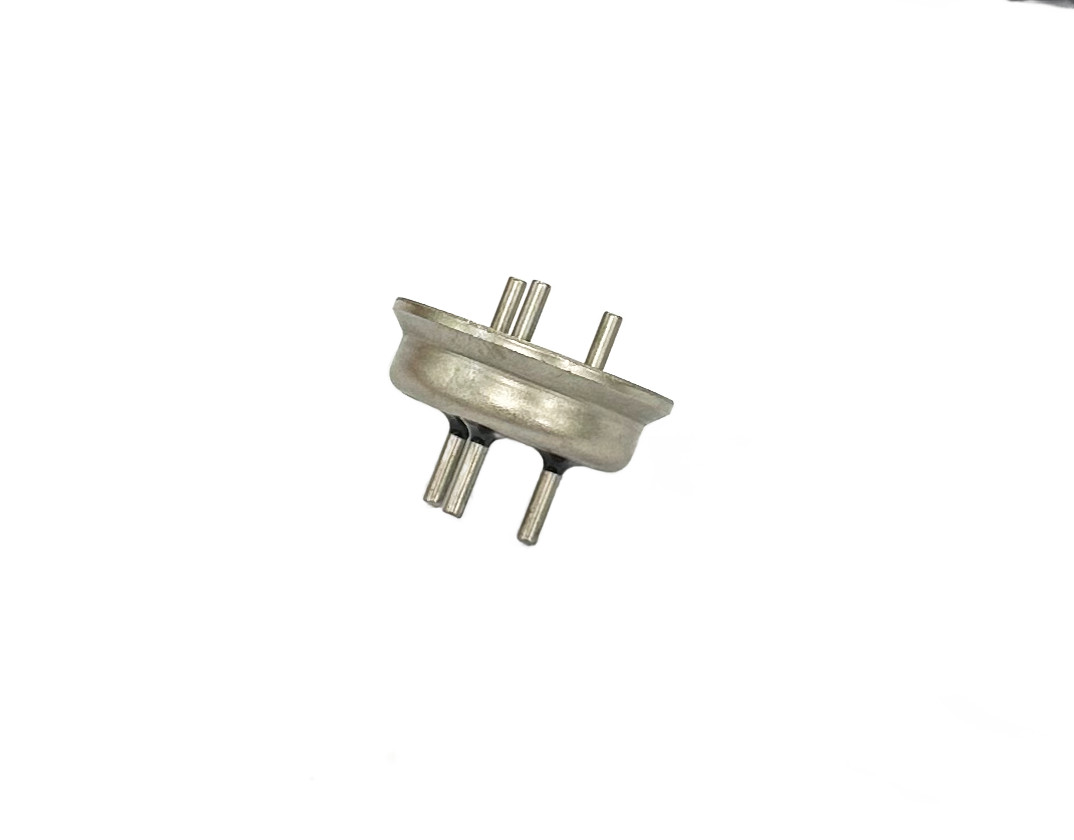

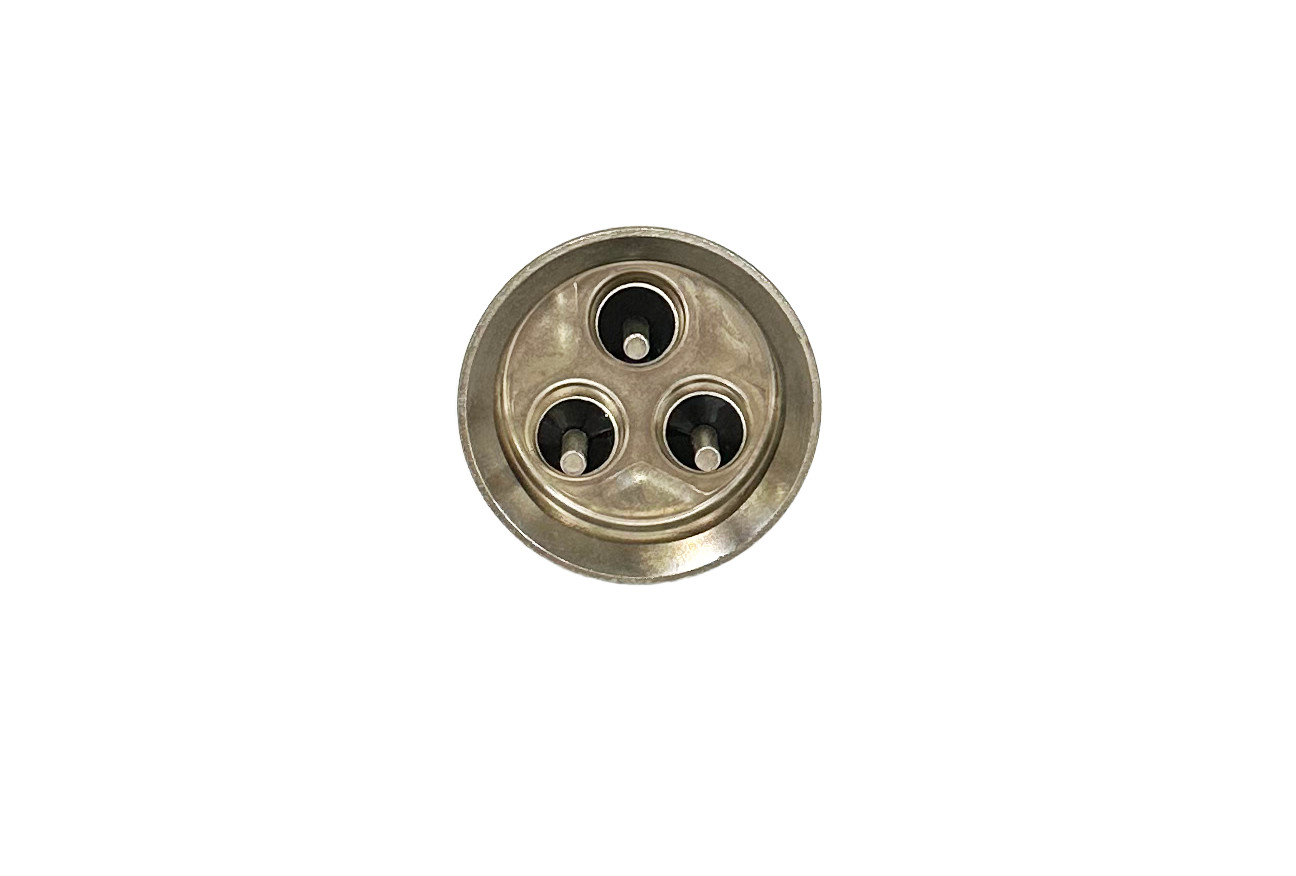

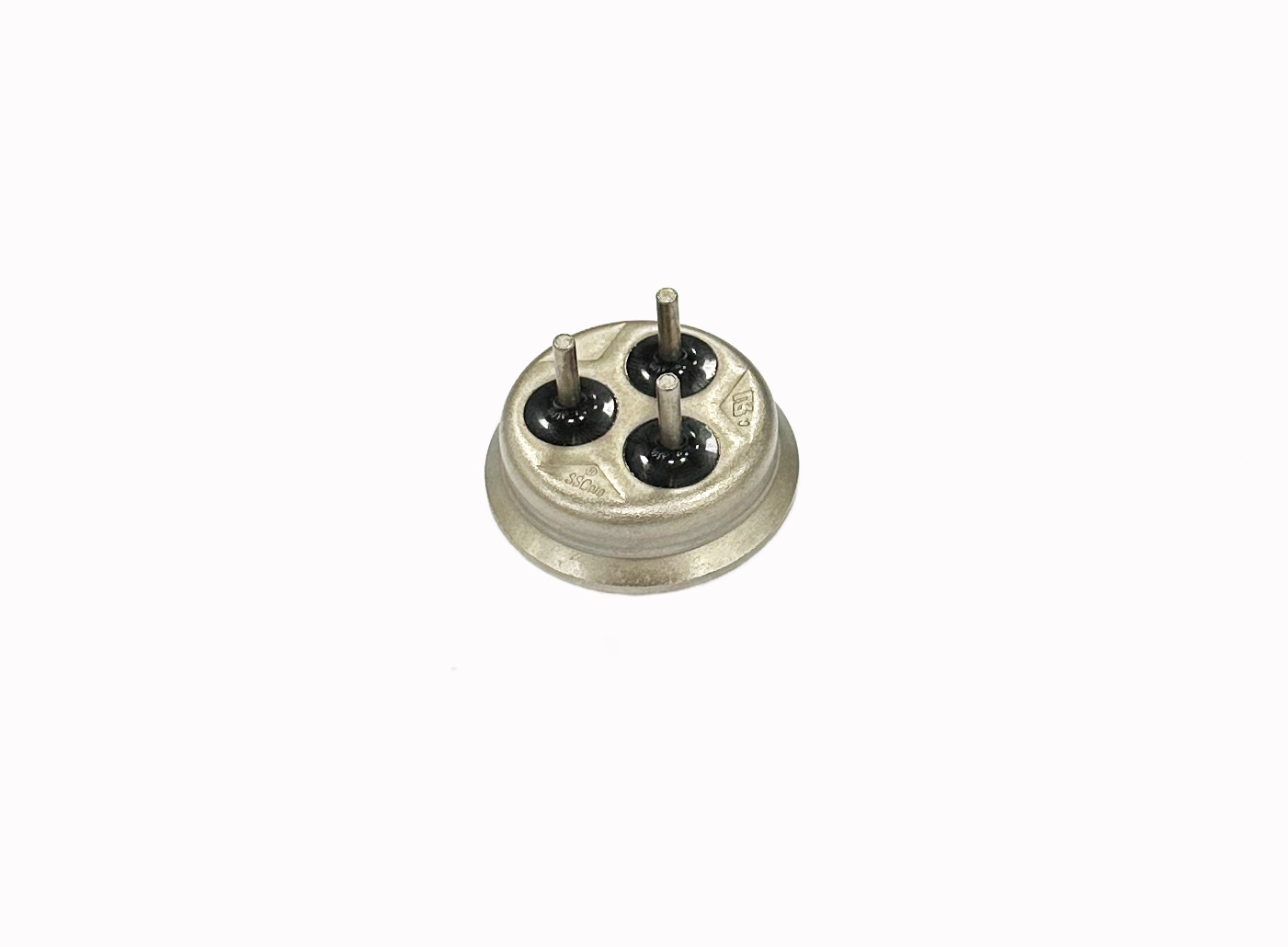

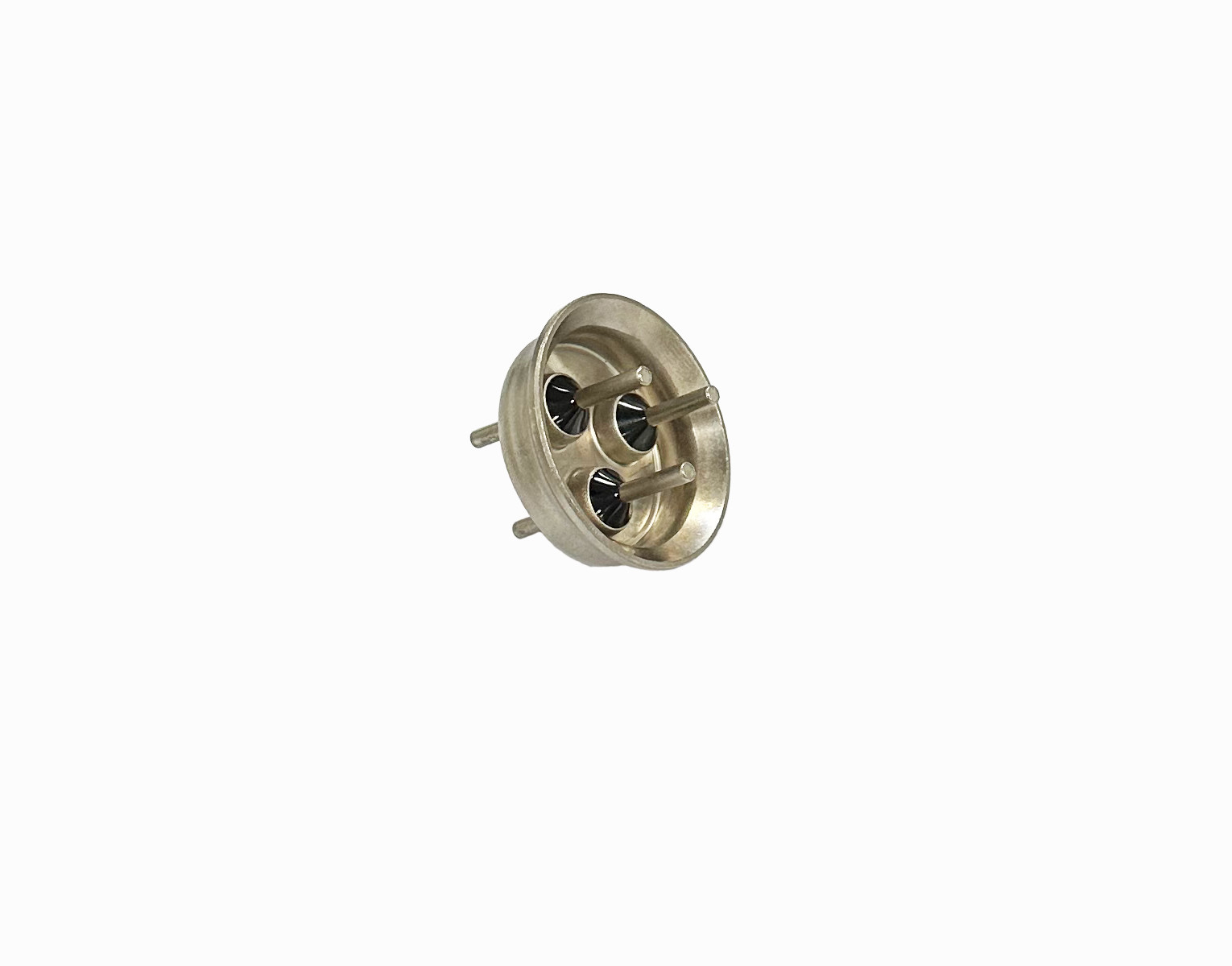

400V Fridge Compressor Terminals Custom Operating Temperature -70°C To +300°C

4J28 Fridge Compressor Terminals 200V-400V Operating Temperature -70°C To +300°C

Product Description:

At our facility, we are able to tailor sintered seal terminals for your specific needs. Our performance parameters are top notch, and they can be attested to the following:

• Material: 45 Steel
• Hi-pot: 3000v, leak current ≤ 0.5MA
• IR: 1000V, IR greater than 1000MΩ
• Leak Test: 4MPa N2 pressure, no leaks
• Burst Test: 5MPa, no leaks
• Operating Temperature Range: -70°C to 300°C

Features:

• Product Name: Fridge Compressor Terminals
• Operating Temperature: -70°C To +300°C
• Application: Refrigerator
• Pin: 4J28
• Connector Type: Circlip Or Wielding
• Special Feature: Refrigerator Compressor Terminals, Compressor Connectors Terminals, Refrigeration Compressor Terminals

Technical Parameters:

Our company's products are comprehensive and environmentally friendly electroless nickel plating method that cover a coating thickness of 3-5 microns. The nickel coating without such harmful materials in mercury, lead, cadmium and hexavalent chromium and is up to the EU standards, and has an SGS environmental testing report that has approved of this. The products have great purpose in electrical connections.

Applications:

The sintered seal terminal is mainly used in automobile air conditioning compressor, more specifically in the 72V-810V range. Its purpose is to provide sealing, insulating, voltage and pressure resistant electrical connection.

Having sintered seal terminal in the air conditioning compressor ensures the quality and performance of the system. It forms a crucial part in order to maintain the overall good working order

Customization:

• Brand Name: SSCore
• Place of Origin: ShenZheng
• Certification: UL
• Minimum Order Quantity: 5 pcs
• Price: 10 - 40 $
• Packaging Details: Cato packing
• Delivery Time: 7 - 14 work days
• Payment Terms: L/C, D/A, T/T, D/P
• Supply Ability: 50w pieces a month
• Voltage: 200V-400V
• Connector Type: Circlip Or Wielding
• Surface Treatment: Electroless Nickel
• Application: Refrigerator
• Pin: 4J28

SSCore Refrigeration Compressor Terminals provide reliable connections for refrigeration compressor. With UL certification, SSCore Refrigeration Compressor Terminals are available in a wide range of voltages, from 200V to 400V. The connector type is either circlip or welding, and the surface treatment is electroless nickel. With a minimum order quantity of 5 pcs, the price of SSCore Refrigeration Compressor Terminals ranges from 10 to 40 $, and the delivery time is 7 to 14 work days.
