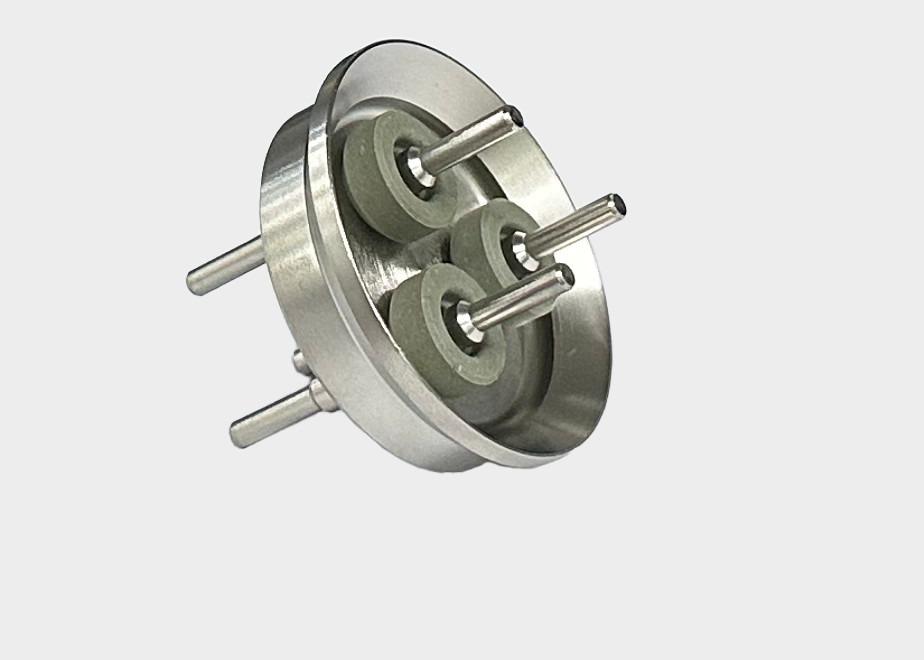

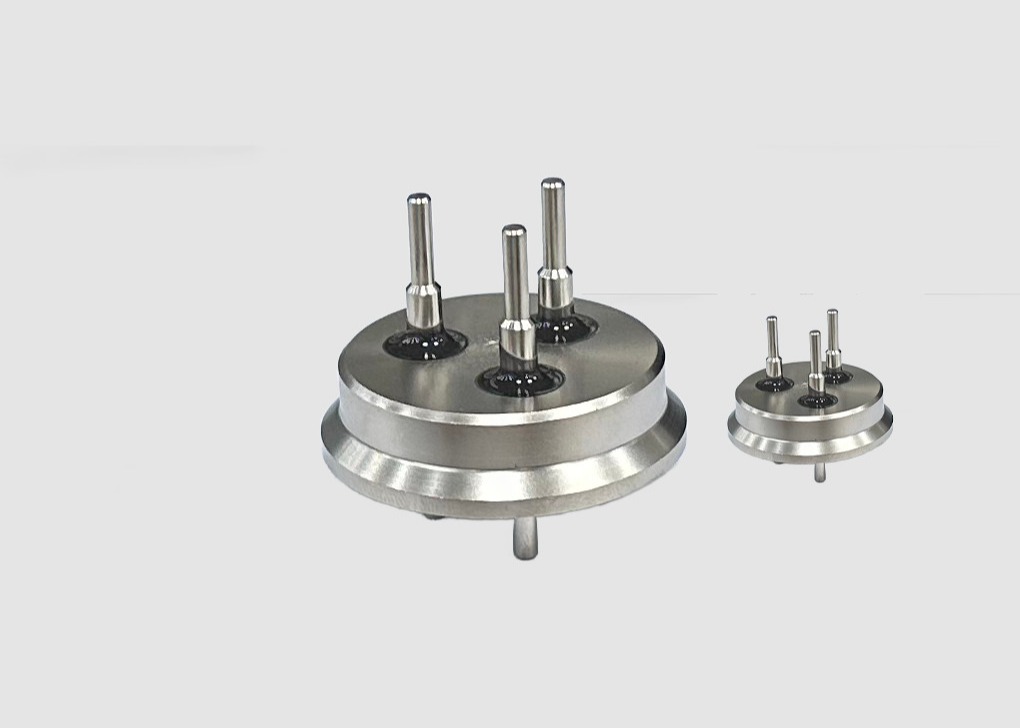

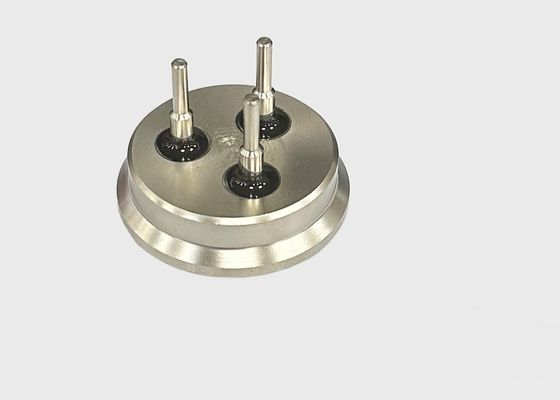

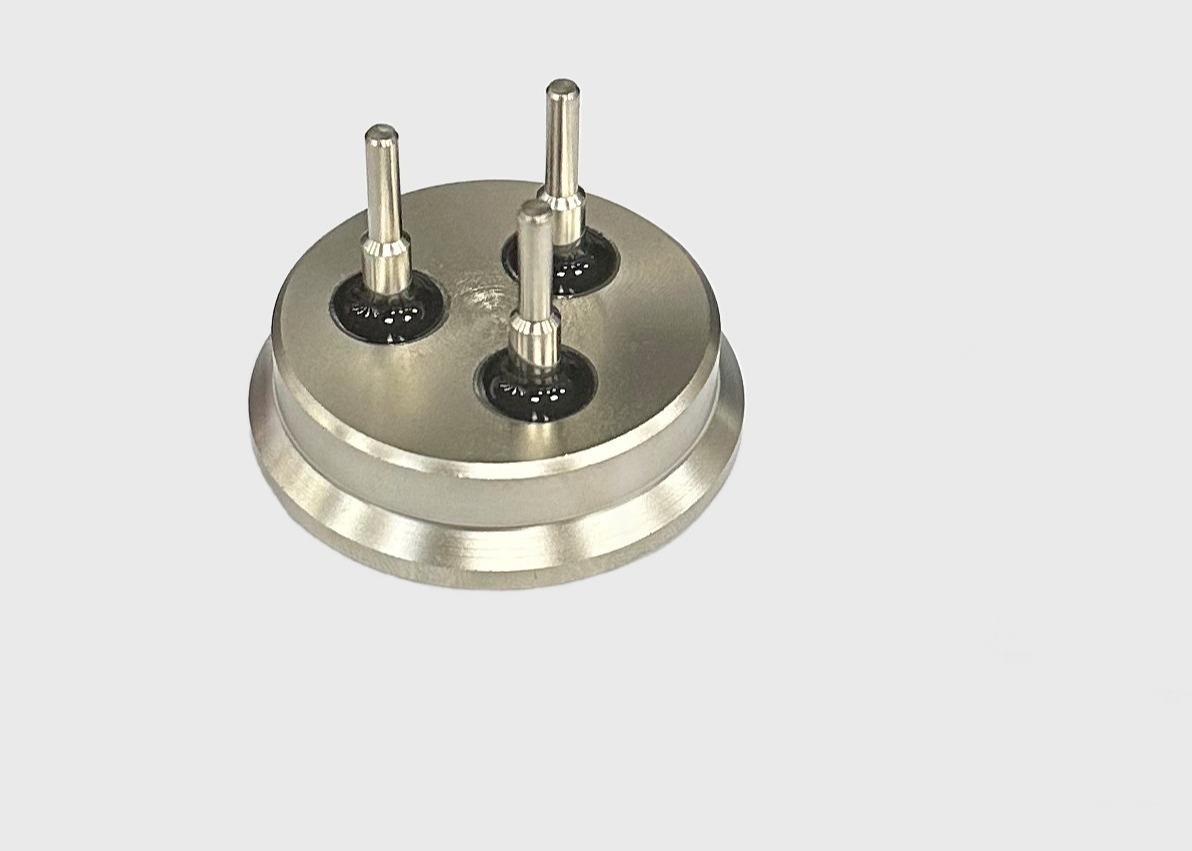

Electroless Nickel Refrigeration Compressor Terminals Current Rating 20A-30A
Product Description:
At our facility, we are able to tailor sintered seal terminals for your specific needs. Our performance parameters are top notch, and they can be attested to the following:
- Material: 45 Steel
- Hi-pot: 3000v, leak current ≤ 0.5MA
- IR: 1000V, IR greater than 1000MΩ
- Leak Test: 4MPa N2 pressure, no leaks
- Burst Test: 5MPa, no leaks
- Operating Temperature Range: -70°C to 300°C
Features:
The sintered seal terminal is widely used in automobile air conditioning system for 72V-810V compressors, providing services such as sealing, insulation, and electrical connections with voltage and pressure resistance capabilities.
This type of terminal is designed to form a closure with excellent sealing performance, and also provide reliable electrical connection with consideration to voltage and pressure. It provides good insulation property and is effective in avoiding short circuits.
Technical Parameters:
| Parameter |
Value |
| Product Name |
Fridge Compressor Terminals |
| Connector Type |
Circlip Or Welding |
| Surface Treatment |
Electroless Nickel |
| Voltage |
200V-400V |
| Current Rating |
20A - 30A |
| Pin |
4J28 |
| Application |
Refrigerator |
| Operating Temperature |
-70°C To +300°C |
Applications:
All products produced by our company use an environmentally friendly electroless nickel plating process. The coating's thickness is between 3-5 microns, and it also adheres to EU standards. It is free of harmful substances including mercury, lead, cadmium, and hexavalent chromium. Additionally, our product is SGS environmental testing compliant.
Our nickel coating is able to create electrical connections, providing long-term and stable effects.
Customization:
Customized Fridge Compressor Terminals from SSCore
SSCore is a well-known manufacturer of fridge compressor terminals. Our fridge compressor terminals are UL certified and have a minimum order quantity of 5 pcs. The price ranges from 10-40 $. The terminals come with cato packing for secure delivery. Delivery time is 7-14 work days, and accepted payment terms include L/C, D/A, T/T, D/P. We have a supply ability of 50w pieces a month. Our fridge compressor terminals have an operating temperature range of -70°C To +300°C, and also have an electroless nickel surface treatment. The current rating is 20A - 30A, and the voltage range is 200V-400V.
Features of SSCore's Fridge Compressor Terminals:
- Brand Name: SSCore
- Place of Origin: ShenZheng
- Certification: UL
- Minimum Order Quantity: 5 pcs
- Price: 10 - 40 $
- Packaging Details: Cato packing
- Delivery Time: 7 - 14 work days
- Payment Terms: L/C, D/A, T/T, D/P
- Supply Ability: 50w pieces a month
- Operating Temperature: -70°C To +300°C
- Surface Treatment: Electroless Nickel
- Current Rating: 20A - 30A
- Product Name: Fridge Compressor Terminals
- Voltage: 200V-400V
Benefits of SSCore's Fridge Compressor Terminals:
- Terminals for Fridge Compressors
- Fridge Compressors Contacts
- Refrigeration Compressor Terminals
Support and Services:
Fridge Compressor Terminals Technical Support and Service
We provide technical support and service for our Fridge Compressor Terminals product. Our team of highly skilled technicians are available to help you get the most out of your purchase, with advice and guidance to ensure you get the best performance from our product.
We offer a range of services to help you make the most of your purchase, including installation assistance, troubleshooting and repairs, as well as remote assistance if required. We also provide product updates, along with regularly scheduled maintenance checks and checks for any potential safety issues.
Our customer service team is also available to answer any questions you may have about our product or service. They are available to assist you by telephone, email, or live chat, so you can get your queries answered quickly and accurately.
If you need any further assistance, our friendly and knowledgeable team is always on hand to help. Thank you for choosing Fridge Compressor Terminals.
