Product Description

Features

Technical Parameters

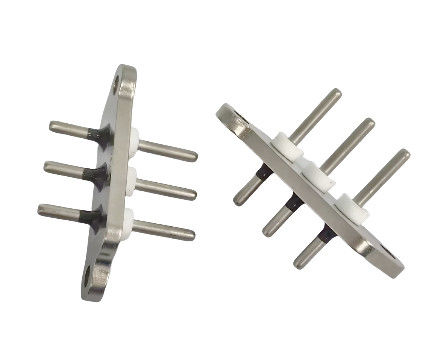

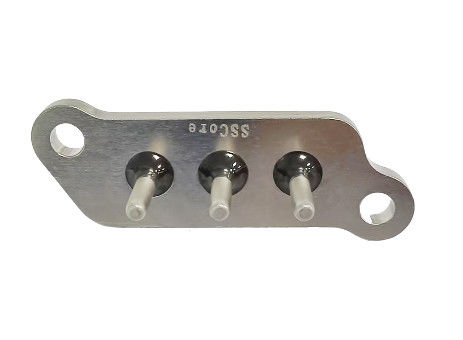

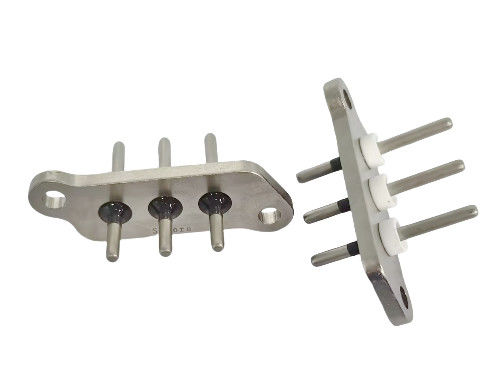

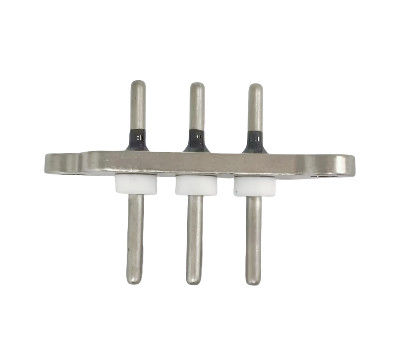

• Plate Material: C45, chosen for its optimal combination of strength and machinability, providing a solid base for the product's structure.
• Pin Material: SUH446 Stainless Steel, selected for its high chromium content, which confers excellent corrosion resistance and reliable electrical conductivity, essential for efficient electrical connections.
• Glass Type: ELAN #48, characterized by its low dielectric loss and high insulation resistance, contributing to the product's outstanding electrical insulation capabilities.
• Ceramic Composition: 95% AL2O3, with its high purity ensuring exceptional heat resistance and mechanical strength, enabling the product to operate reliably in high-temperature environments.
• Insulator Resistance: 1000MΩ@1000VDC, measured under specific environmental conditions to guarantee consistent electrical isolation.
• Voltage Resistance: 3500VAC, 50Hz, 2 seconds, 1mA max. leakage current, a stringent test standard to ensure the product's suitability for a wide range of voltage applications.
• Leak Test Pressure: 4.0 MPa, a demanding test to confirm the product's leak-tight integrity.

Applications

Customization

Support and Services

• Our dedicated technical support team is available around the clock to address any questions or concerns you may have regarding the product. From installation guidance to troubleshooting, we are here to ensure that you can fully utilize the product's capabilities and overcome any technical challenges that may arise.
• We offer a generous warranty period during which we will promptly address any manufacturing defects or performance issues. Our commitment to quality extends beyond the point of sale, and we will work tirelessly to rectify any problems to your satisfaction.
• Our after-sales service is designed to provide long-term support and assistance. We can offer advice on maintenance best practices, provide replacement parts as needed, and help you with any upgrades or modifications to keep your product operating at peak performance.

Packing and Shipping

• The product is meticulously packaged using state-of-the-art anti-static and shock-absorbing materials. This ensures that it is protected from any potential damage during transit, safeguarding its delicate components and maintaining its performance integrity.
• We have established partnerships with reliable shipping carriers, enabling us to offer a variety of shipping options to suit your specific needs. Whether you require expedited delivery for time-sensitive projects or a more cost-effective standard shipping method, we can ensure that your product arrives safely and on time.

FAQ

• Q: What is the material of the plate?
  A: The plate is made of C45, a material known for its excellent mechanical properties and suitability for a wide range of industrial applications.
• Q: What is the voltage resistance test specification?
  A: The product is tested at 3500VAC, 50Hz for 2 seconds, with a maximum allowable leakage current of 1mA, ensuring its ability to withstand high-voltage conditions without failure.
• Q: Does the product come with a warranty?
  A: Yes, we offer a comprehensive warranty period to cover any manufacturing defects or performance issues, giving you peace of mind with your purchase.
• Q: Can the product be customized to fit my specific application?
  A: Absolutely. Our team of experts can work with you to customize the product's dimensions, materials, and technical parameters to meet your unique requirements.
