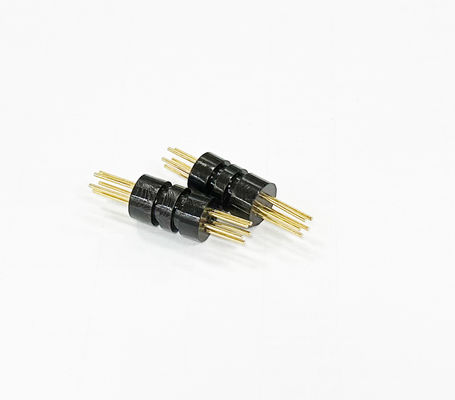

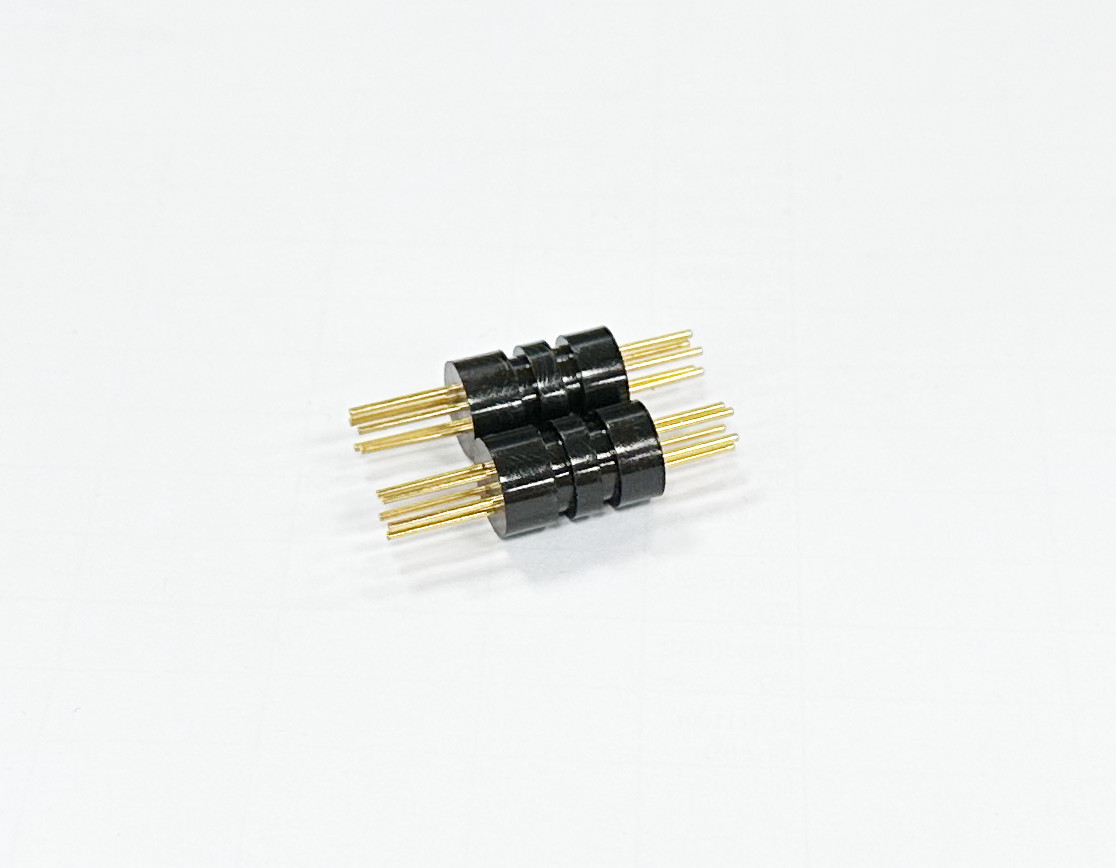

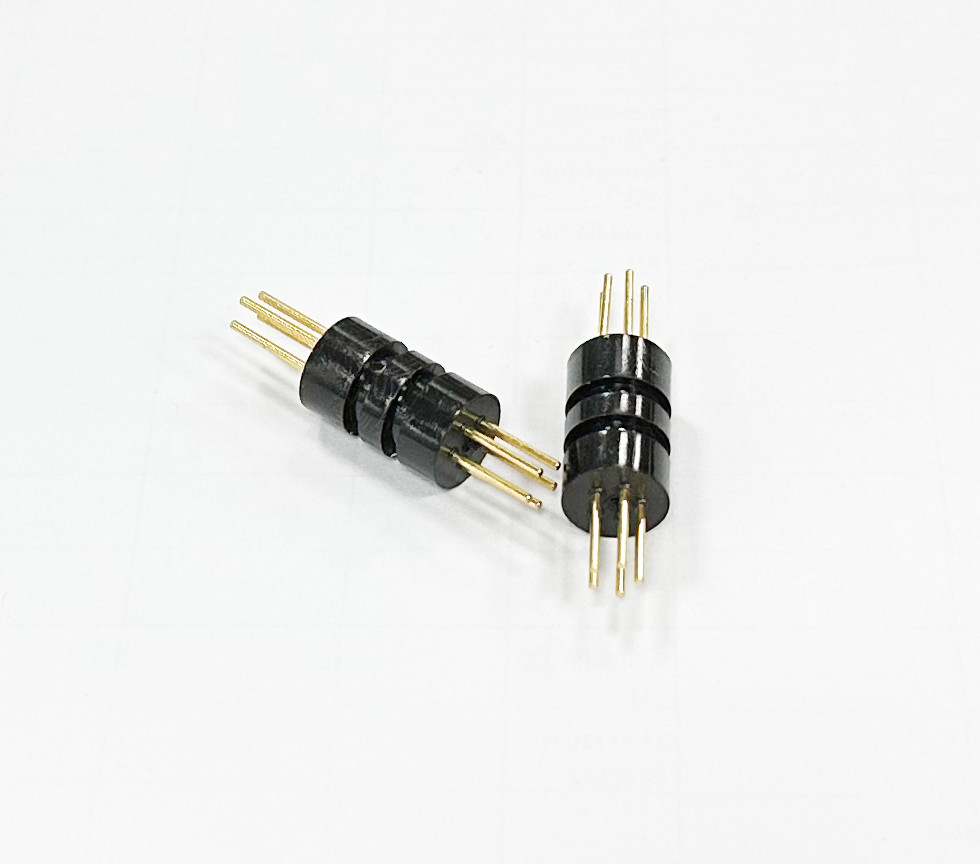

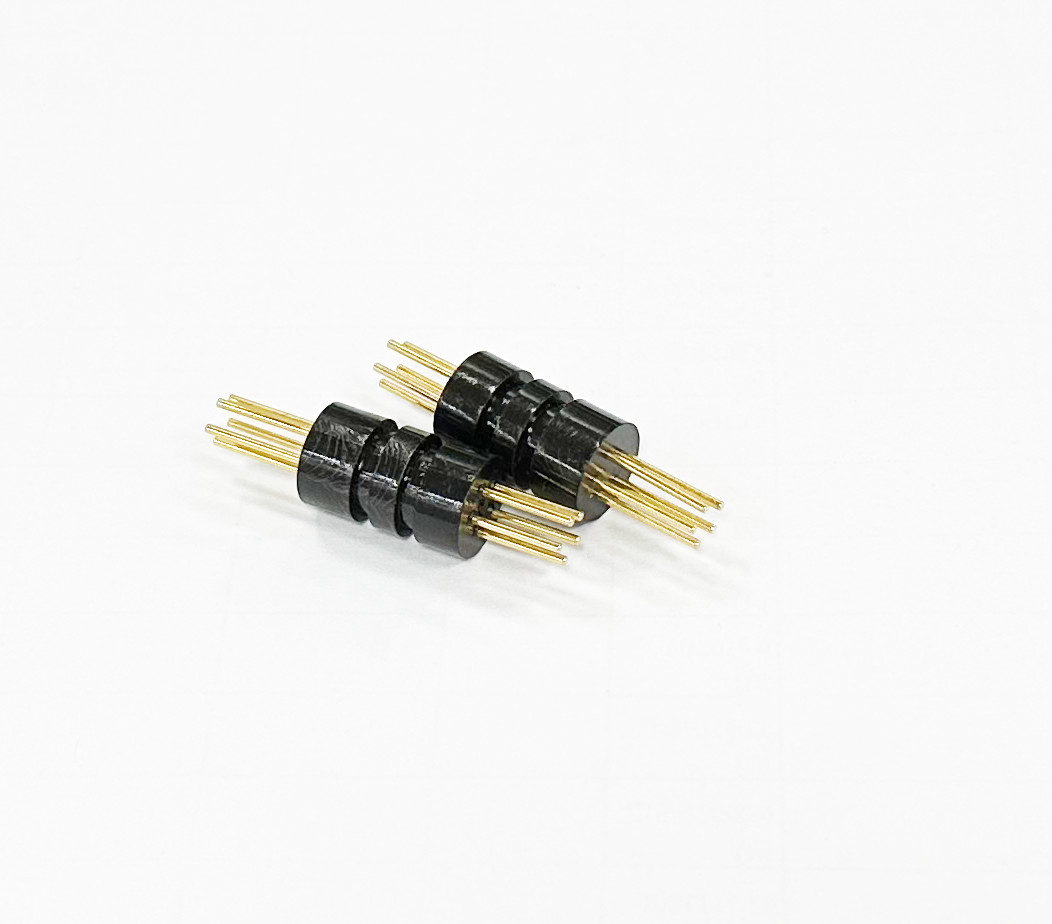

Industrial Temperature Range Glass-To-Metal Seals -70C To 300C
Product Description:
We offer a variety of customized sintered seal terminals, designed specifically to meet our customers' requirements. Performance parameters of these terminals typically include:
- Material: 45 Steel
- Hi-pot: 3000v leak current ≤ 0.5MA
- IR: 1000V IR > 1000MΩ
- Leak Test: 4MPa N2 pressure No leak
- Burst Test: 5MPa No leak
- Operating Temperature Range: -70°C - 300°C
Features:
- Product Name: Glass To Metal Seals
- Material: 45 Steel
- Surface Treatment: Electroless Nickel
- Temperature Range: -70℃ To 300℃
- Voltage Rating: 12V-540V
- Application: Industrial
- Specialty: Metal-to-Glass Bond Seals, Metal-to-Glass Seals, Glass-Metal Bond Seals
Technical Parameters:
Our company's products are all processed by using environmentally friendly electroless nickel plating method. The coating thickness is between 3-5 microns, and it complies with EU standards. It doesn't contain any hazardous chemical such as mercury, lead, cadmium, and hexavalent chromium. SGS's environmental testing report also confirms its safety and greenness. In addition, environmentally friendly nickel coating plays an important role in electrical connections.
Applications:
SSCore provides a reliable solution for Glass-Metal Bond Seals, Glass-to-Metal Seals and Metal-to-Glass Bond Seals with its high-quality Industrial Seals. Our Glass-to-Metal Seals are made from 45 steel with Electroless Nickel surface treatment, which ensures a long-lasting and tight seal for a wide range of applications.
Our Glass-to-Metal Seals are certified with IATF16949, and you can order them with a minimum of 5 pieces. The price of the product starts from 10 $ to 40 $ per piece. We package them in vacuum package to ensure safe and secure delivery. You can expect the delivery of your order within 7 to 14 workdays.
We guarantee a Pressure Range of 2-5MPa and a Temperature Range of -70℃ to 300℃. Our Glass-to-Metal Seals have a Supply Ability of 50w pieces a month, and you can pay us via L/C, D/A, T/T, D/P.
Customization:
Glass-to-Metal Seals
Brand Name: SSCore
Place of Origin: ShenZheng
Certification: IATF16949
Minimum Order Quantity: 5 pcs
Price: 10 - 40 $
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Material: 45 Steel
Voltage Rating: 12V-540V
Surface Treatment: Electroless Nickel
Temperature Range: -70℃ To 300℃
Application: Industrial
Metal-Glass Seals & Metal Seal Connectors
SSCore metal-glass seals and metal seal connectors are designed to connect delicate glass components to electronic circuits, providing a reliable, hermetic seal that is highly resistant to corrosion and vibration. Our seals are crafted using premium quality 45 Steel and feature an Electroless Nickel surface treatment for optimal durability and performance.
These glass-to-metal seals are designed to withstand temperatures ranging from -70℃ to 300℃, and can operate in a wide range of voltage ratings from 12V to 540V. Our seals are certified to IATF16949 standards, and come with a minimum order quantity of 5 pcs. Prices range from 10 - 40$, and delivery typically takes 7 - 14 work days.
Support and Services:
Glass To Metal Seals Technical Support and Service
Glass to metal seals are used to protect delicate electronic components from harsh environments. Our team of experienced engineers and technicians are available to provide technical support and service for any of your glass to metal seal needs.
Our technical support and service covers the following areas:
- Design and engineering
- Material selection and testing
- Production and assembly
- Quality control and assurance
- Installation and maintenance
We are committed to providing the highest quality products and services for our customers. Our knowledgeable team of experts are here to provide you with the best solutions for your glass to metal sealing requirements.
