Energy Vehicle Compressor Sealed Terminal with Bimetallic Copper-Plated Double Welding Sheets -40°C to 150°C 50A Max Current

5PCS

MOQ

9$-10$/PCS

Price

Energy Vehicle Compressor Sealed Terminal with Bimetallic Copper-Plated Double Welding Sheets -40°C to 150°C 50A Max Current

Features Gallery Product Description Request A Quote

Features

Specifications

WORKING TEMPERATURE: -40°C ~ + 150°C

CURRENT: 45A-50A

INSULATION: 1000MΩ @ 1000VDC

PINS MATERIALS: SUH446 WITH COPPER CORED, RATIO 2:1

TABS MATERIALS: SPC (COPPER PLATED, 1-1.5μm OVER NICKEL PLATED 2-5 Um)

Highlight:

Energy Vehicle Compressor Sealed Terminal

,

Copper-Plated Compressor Sealed Terminal

,

Double Welding Sheets Compressor Sealed Terminal

Basic Infomation

Place of Origin: China

Brand Name: SSCOre

Certification: ISO9001/ISO1400

Model Number: 41-X0373

Payment & Shipping Terms

Gallery

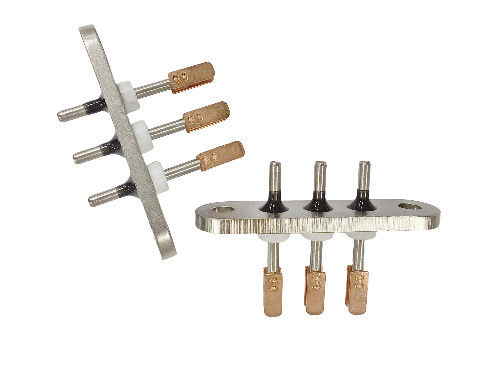

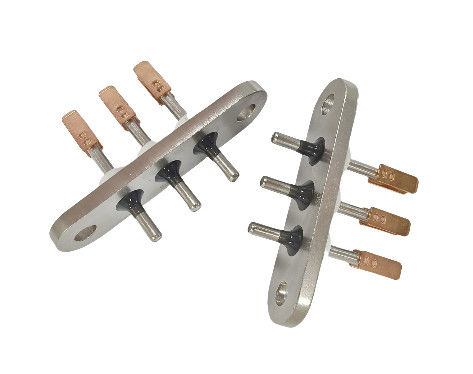

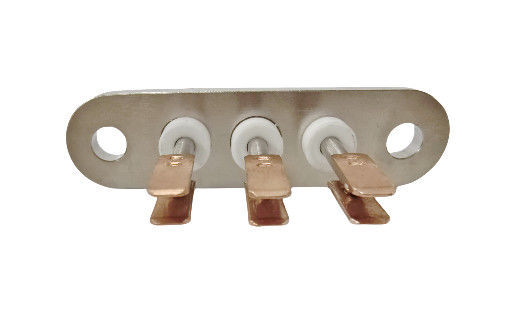

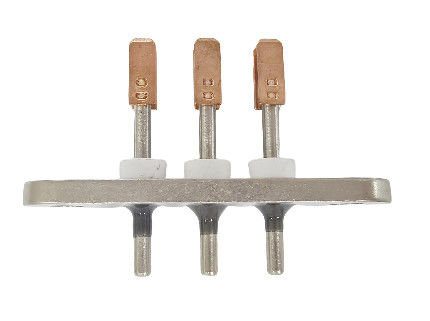

Energy Vehicle Compressor Sealed Terminal with Bimetallic Copper-Plated Double Welding Sheets -40°C to 150°C 50A Max Current

Product Description

Product Description

This product is a highly engineered component that combines top-notch materials and precise manufacturing processes to meet the most demanding requirements. The body, made of 45 Steel, offers a solid and reliable foundation, ensuring durability and stability in various operating conditions. The pins, featuring a unique SUH446 with copper cored design in a 2:1 ratio, not only provide excellent corrosion resistance but also guarantee enhanced electrical conductivity for efficient power transfer. The ELA 48# glass and 95% AL2O3 ceramic play crucial roles in insulation and heat resistance respectively, safeguarding the overall integrity of the electrical system. The TABS, crafted from SPC with a specific copper plated (1 - 1.5μm over nickel plated 2 - 5μm) finish, serve as the perfect interface for reliable electrical connections.

Features

Feature	Description
High Insulation	Passes a static check of 1000MΩ @ 1000VDC, providing outstanding electrical isolation to prevent leakage and short circuits.
Strong Hi-Pot Capability	Withstands a static check of 3000VAC for 1 second with a leakage current less than 0.5mA, demonstrating its ability to handle high voltages without breakdown or flashover.
Leak-Proof	Successfully endures a 3.5 MPa N2 pressure leak test, ensuring airtight integrity, which is vital for applications where gas or fluid containment is crucial.
Surface Protection	Electroless nickel plating with a thickness of 1 - 5 microns offers enhanced corrosion resistance and a smooth surface finish, prolonging the product's lifespan.
Robust Tab Welding	The TAB welding strength is tested to a minimum torque of 1 N.m, ensuring a firm connection and preventing shedding, maintaining reliable electrical pathways.

Technical Parameters

Body Material: 45 Steel
Pin Material: SUH446 with copper cored, ratio 2:1
Glass Type: ELA 48#
Ceramic Composition: 95% AL2O3
TAB Material: SPC (copper plated, 1 - 1.5μm over nickel plated 2 - 5μm)
Insulation Resistance: 1000MΩ @ 1000VDC
Hi-Pot: 3000VAC, 1 second, 0.5mA max. leakage current
Leak Test Pressure: 3.5 MPa
Nickel Plating Thickness: 1 - 5 microns
Tab Welding Strength: Torque 1 N.m min.
Maximum Current: 50A
Normal Working Current: 45A
Working Temperature: -40°C to +150°C

Applications

This product finds extensive use in the electrical systems of new energy vehicles, where it is a cornerstone component in compressor sealed terminals. Its ability to handle high currents, withstand harsh temperatures, and maintain reliable electrical performance makes it indispensable in this demanding application. Beyond the automotive realm, it is also highly sought after in industrial automation. In factories and manufacturing plants, it can be integrated into control panels, robotic systems, and power distribution units, where its high insulation and voltage resistance ensure the smooth operation of complex machinery. In power generation facilities, it is used to enhance the safety and efficiency of electrical connections, safeguarding against power surges and maintaining stable power transmission. Additionally, it can be applied in any other field where dependable electrical performance, resistance to environmental stressors, and efficient power transfer are essential.

Customization

We understand that every customer's project is unique, and thus we offer comprehensive customization services. Our team of experienced engineers and technicians is at your disposal to modify the product's dimensions to fit specific installation spaces, whether they are cramped compartments in a vehicle or custom-built enclosures in an industrial setting. We can also adjust the material composition to meet specialized performance needs, such as increasing the copper content in the pins for even higher conductivity in certain high-power applications. Furthermore, we can fine-tune the technical parameters to optimize the product's functionality for your particular application, tailoring the insulation resistance, voltage tolerance, or current-carrying capacity to precisely match your requirements.

Support and Services

Technical Support: Our dedicated team of experts is available around the clock to provide you with comprehensive installation guidance. Whether you are a first-time user or an experienced engineer, we can walk you through the installation process step by step, ensuring that you get the best performance out of the product. In case of any technical issues or troubleshooting needs, our experts are just a phone call or email away, ready to diagnose and solve the problem promptly.
Warranty: We stand behind the quality of our product with a generous warranty period. During this time, if you encounter any manufacturing defects or performance issues, we will take full responsibility. Our commitment is to replace or repair the product at no cost to you, ensuring your peace of mind and satisfaction with your purchase.
After-Sales Service: Our relationship with you doesn't end at the point of sale. We offer long-term after-sales service to ensure that your product continues to perform optimally. We can provide maintenance advice based on your specific usage patterns and environmental conditions, helping you extend the life of the product. If replacement parts are ever needed, we can supply them quickly and efficiently, minimizing downtime. Additionally, we can assist with any upgrades or modifications that may become necessary as your application evolves over time.

Packing and Shipping

Packing: The product is packaged with the utmost care, using state-of-the-art anti-static and shock-absorbing materials. Each component is individually wrapped and secured to prevent any damage during transit. Whether it's being shipped across the country or overseas, our packaging is designed to withstand the rigors of transportation, ensuring that the product arrives at your doorstep in pristine condition.
Shipping: We have established strong partnerships with reliable shipping carriers, enabling us to offer a wide variety of shipping options. Whether you need expedited delivery for a time-sensitive project or a more cost-effective standard shipping method, we can accommodate your needs. Our shipping team closely monitors the progress of each shipment, ensuring timely and secure delivery of your order.

FAQ

Q: What is the material of the body?
A: The body is made of 45 Steel.
Q: What is the insulation resistance test specification?
A: Static check 1000MΩ @ 1000VDC.
Q: Does the product come with a warranty?
A: Yes, we offer a warranty period for manufacturing defects and performance issues.
Q: Can the product be customized?
A: Absolutely. Our team can customize it according to your specific needs.
