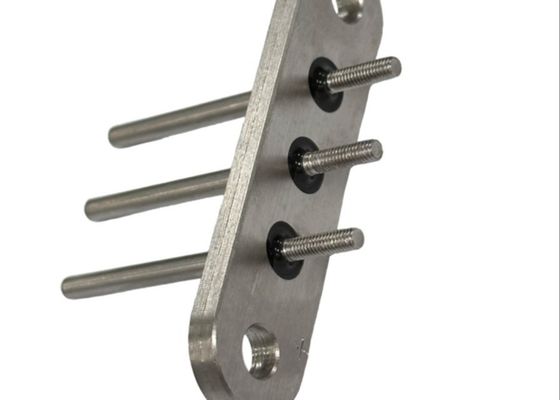

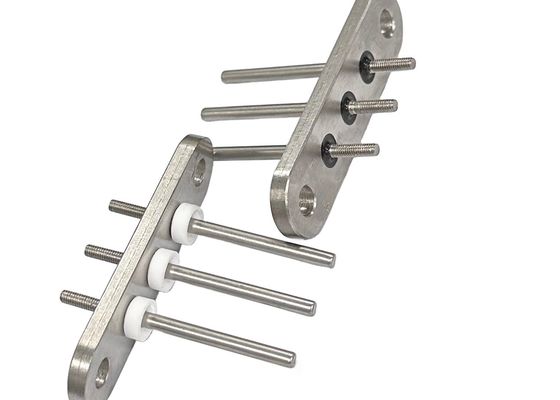

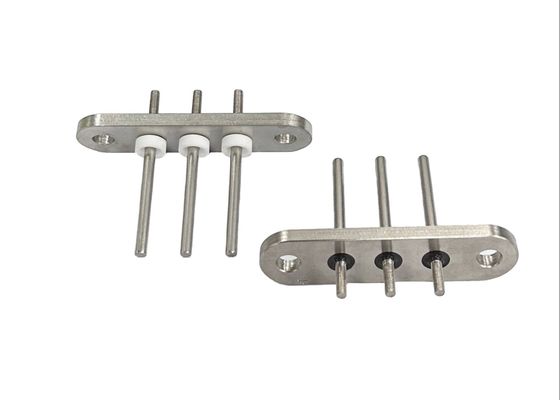

Hermetic Connector 20A Automobile Port
Product Description:
We have the ability to customize a variety of sintered seal terminals based on the customer's needs. The performance features of such terminals produced by us are as follows:
1. Material: 45 Steel
2. Hi-pot: 3000v leakage current ≤ 0.5MA
3. IR: 1000V IR > 1000MΩ
4. Leak Test: 4MPa N2 pressure without leakage
5. Burst Test: 5MPa without leakage
6. Operating Temperature Range: -70°C - 300°C
Features:
- Product Name: Hermetic EV Connector
- Insulator Material: Glass And Ceramic
- Manufacturer: SSCore
- Connector Type: Hermetic
- Voltage Rating: 12V-540V
- Keywords: Hermetic Vehicle Port, Hermetic Automobile Port, Hermetic Electric Vehicle Port
Technical Parameters:
The company's products are all plated with an eco-friendly electroless nickel plating method. The thickness of the coating is between 3 to 5 microns.
The eco-friendly nickel coating does not contain mercury, lead, cadmium, and hexavalent chromium, or any other hazardous substances, and is compliant to the EU standards with an SGS environmental testing report.It is mainly used for electrical connections.
Applications:
The sintered seal terminal is mainly applied in the 72V-810V compressor of automobile air conditioning for a few significant purposes: sealing, insulating, voltage and pressure resistant electrical connection.
This terminal, which has been well designed, provides an ideal and reliable solution of electrical connection. It also helps enhance the air conditioning systems in the automobile.
The sintered terminal is highly durable and corrosion resistant which improves the longevity of the air conditioning system significantly.
Customization:
Hermetic EV Connector
Brand Name: Sscore
Place of Origin: ShenZheng
Certification: IATF16949
Minimum Order Quantity: 5 pcs
Price: 10 - 40 $
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Voltage Rating: 12V-540V
Mounting Type: Panel Mount
Connector Type: Hermetic
Insulator Material: Glass And Ceramic
Product Name: Hermetic EV Connector
Sscore's Hermetic EV Connector is the perfect solution for a Hermetic Automobile Connector or Hermetic Electric Vehicle Connector and Hermetic Electric Vehicle Port.
These connectors are designed for superior performance and durability with a voltage rating of 12V-540V and a mounting type of Panel Mount.
The insulator material is a combination of glass and ceramic to ensure the highest quality of the product.
Order your Hermetic EV Connector today with a minimum order quantity of 5 pcs and a price range of 10-40 $.
Delivery time is 7-14 work days after payment is received.
Acceptable payment terms include L/C, D/A, T/T, and D/P.
