Home /Products/Hermetic EV Connector/SUH446 STAINLESS STEEL PINS Steel Needle with 2-5μm Nickel Plating for Sealed Terminal of Energy Vehicle Compressor

SUH446 STAINLESS STEEL PINS Steel Needle with 2-5μm Nickel Plating for Sealed Terminal of Energy Vehicle Compressor

5PCS

MOQ

9$-10$/PCS

Price

SUH446 STAINLESS STEEL PINS Steel Needle with 2-5μm Nickel Plating for Sealed Terminal of Energy Vehicle Compressor

Features Gallery Product Description Request A Quote

Features

Specifications

INSULATION: 500MΩ@ 500VDC

WORKING TEMPERATURE: -40°C ~ +150°C

OPERATION CURRENT: 30A

FNISH: NICKEL PLATED , THICKNESS 2~5μm

PINS MATERIALS: SUH446 STAINLESS STEEL

Highlight:

Sealed Terminal Stainless Steel Pins

,

Energy Vehicle Compressor Stainless Steel Pins

,

SUH446 STAINLESS STEEL Steel Needle

Basic Infomation

Place of Origin: China

Brand Name: SSCOre

Certification: ISO9001/ISO1400

Model Number: 41-X0850

Payment & Shipping Terms

Gallery

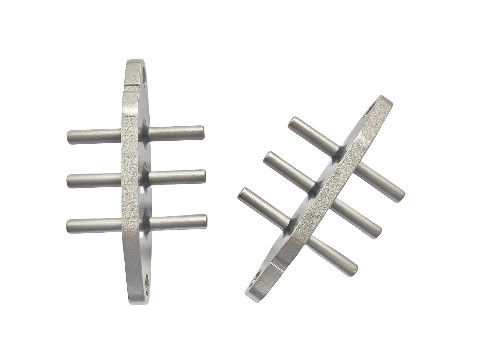

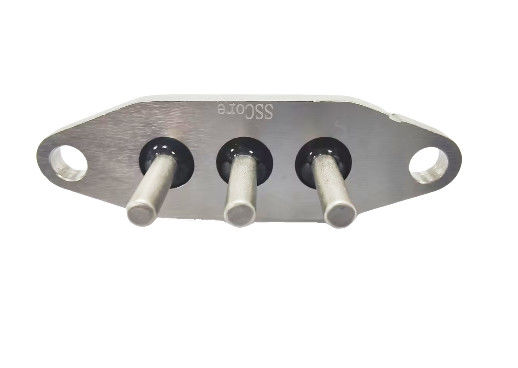

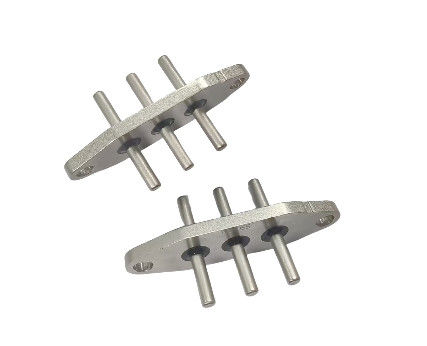

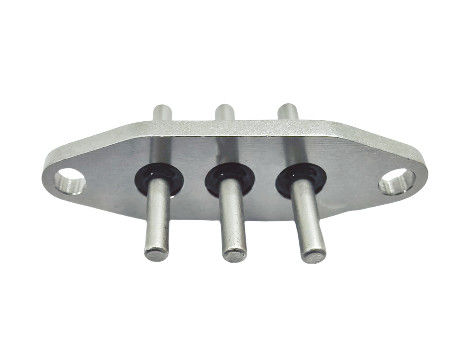

SUH446 STAINLESS STEEL PINS Steel Needle with 2-5μm Nickel Plating for Sealed Terminal of Energy Vehicle Compressor

Product Description

Product Description

This product is a meticulously designed and engineered component, purpose - built to meet the rigorous demands of various industries. The body is constructed from 45 steel, renowned for its robust mechanical properties and high strength, providing a solid foundation for the overall structure. The SUH446 stainless steel pins not only offer excellent corrosion resistance but also ensure reliable electrical conductivity, making them ideal for applications where stable electrical connections are crucial. ELAN #48 glass is incorporated into the design, contributing to enhanced insulation properties, further safeguarding the product's electrical integrity.

Product Description

The body of the product is formed by the 45 steel, which has a high level of toughness and durability. It is capable of withstanding significant mechanical stress and environmental factors. The SUH446 stainless steel pins are carefully machined to exacting standards, ensuring precise fit and reliable electrical performance. ELAN #48 glass is carefully selected for its unique properties, which help to maintain the electrical insulation and prevent electrical leakage.

Features

Feature	Description
Insulation Resistance	A static check of 500MΩ @ 500VDC, providing a high level of electrical isolation. This ensures that the product can effectively prevent electrical current from passing through, safeguarding against potential short circuits and electrical malfunctions.
Hi - Pot	3000VAC for 1 second with leakage current less than 0.5mA, demonstrating the product's ability to withstand high voltage without breakdown or flashover. This feature is crucial for applications where electrical systems are subject to high - voltage stress, ensuring safe and reliable operation.
Leak test	A 2.5 MPa N2 pressure test for 1 minute, ensuring airtight integrity. This test is essential for applications where the product needs to maintain a sealed environment, preventing the leakage of gases or fluids.
Nickel plating	A thickness of 2 - 5μm, enhancing corrosion resistance and providing a smooth surface finish. The nickel plating not only protects the underlying materials from corrosion but also improves the product's aesthetic appearance.
Neutral salt spray test	Passes a 12 - hour neutral salt spray test with rust area no more than 5% of the total area, indicating good corrosion resistance. This test simulates the effects of saltwater exposure, ensuring the product can withstand harsh environmental conditions.
Operation current	A maximum current of 30A, suitable for high - power applications. The product is designed to handle large electrical currents, making it suitable for use in industrial settings where high - power requirements are common.
Working temperature	Operating temperature range from - 40°C to + 150°C, meeting the requirements of different working environments. This wide temperature range allows the product to be used in various applications, from cold - temperature regions to hot - temperature environments.
RoHS compliance	All materials used are compliant with RoHS standards, ensuring environmental safety and sustainability. This compliance is important for reducing the environmental impact of the product and promoting responsible manufacturing practices.

Technical parameters

Body material: 45 steel
Pin material: SUH446 stainless steel
Glass type: ELAN #48
Insulation resistance: 500MΩ @ 500VDC
Hi - pot voltage: 3000VAC
Leak test pressure: 2.5 MPa
nickel plating thickness: 2 - 5μm
operation current: 30A
working temperature range: - 40°C to + 150°C

Applications

This product finds applications in new energy vehicle electrical systems, particularly in compressor sealed terminals. It can also be used in industrial settings such as manufacturing plants, power generation facilities, and electrical equipment. The product's high - performance capabilities make it suitable for various applications where reliable electrical performance and corrosion resistance are required.

Customization

We offer customization services to meet the specific needs of our customers. Whether it's adjusting the dimensions, changing the material composition, or modifying the electrical properties, our team of experts can work with you to develop a tailored solution. For example, we can design the product with specific mounting options or electrical connections to meet the requirements of different applications.

Support and services

Technical support: Our team of experts is available to provide assistance with installation, troubleshooting, and product usage. We can offer guidance on how to properly install and operate the product, ensuring optimal performance.
Warranty: We offer a warranty period for the product, covering any manufacturing defects or performance issues. If the product fails to meet the expected standards during the warranty period, we will provide repair or replacement services.
After - sales service: We are committed to providing after - sales support, including maintenance and replacement of parts. We can also offer advice on how to maintain the product over time, ensuring its longevity and continued performance.

Packing and Shipping

Packing: The product is carefully packaged using high - quality materials to protect it during transit. We use anti - static and shock - absorbing materials to prevent damage to the product. The packaging is designed to be compact and secure, ensuring safe transportation.
Shipping: We work with reliable shipping partners to ensure timely delivery of the product. We offer various shipping options, including express delivery and standard shipping, depending on the customer's needs. The shipping process is monitored to ensure the product arrives safely and on time.

FAQ

Q: What is the material of the body?
A: The body is made of 45 steel.
Q: What is the insulation resistance of the product?
A: The insulation resistance is 500MΩ @ 500VDC.
Q: Does the product meet RoHS standards?
A: Yes, all materials used are compliant with RoHS standards.

SUH446 STAINLESS STEEL PINS Steel Needle with 2-5μm Nickel Plating for Sealed Terminal of Energy Vehicle Compressor 0
