Energy Vehicle Compressor Ceramic Sealing Terminal with HNBR Sleeve and 50C Maximum Operating Temperature

5PCS
MOQ
9$-10$/PCS
Price
Energy Vehicle Compressor Ceramic Sealing Terminal with HNBR Sleeve and 50C Maximum Operating Temperature
Features Gallery Product Description Request A Quote
Features
Specifications
WORKING TEMPERATURE: 150°C MAX
WORKING CURRENT: 40-50A
SLEEVE: HNBR
PINS: SUH446 STAINLESS STEEL
INSULATION RESISTANCE: 1000MΩ @ 1000VDC
Highlight:

EV Compressor Ceramic Sealing Terminal

,

HNBR Sleeve Ceramic Sealing Terminal

Basic Infomation
Place of Origin: China
Brand Name: SSCOre
Certification: ISO9001/ISO1400
Model Number: 41-X0375
Payment & Shipping Terms
Product Description
I. Company Introduction



Our company, Southern Source Core Electric Co., Ltd., specializes in the production of glass - metal encapsulation products. With years of experience in the industry, we have developed advanced manufacturing techniques and a strict quality control system to ensure the high - quality and reliability of our products.

II. Product Description

A. Product Overview

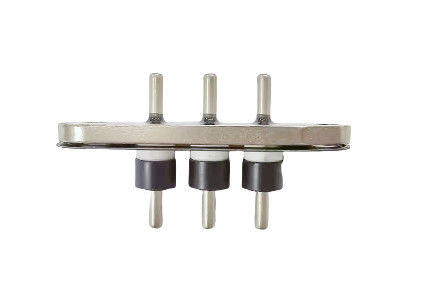

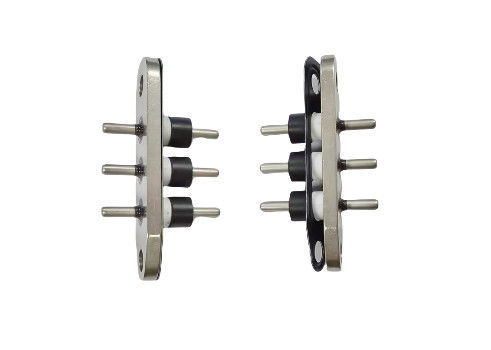

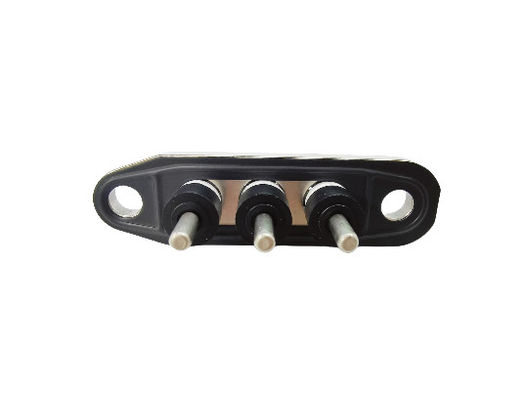

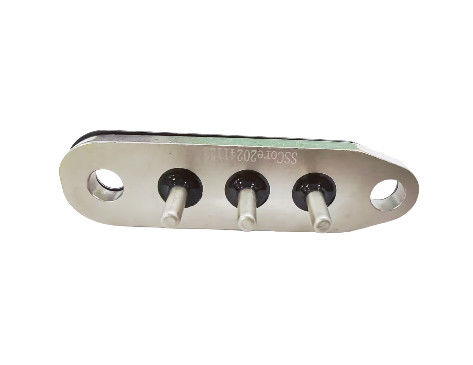

The product is a sealing terminal used for new - energy vehicle compressors. It is made of 95# ceramic, equipped with sheaths and gaskets. The working temperature can reach up to 50℃.

B. Product Features and Benefits



Features Benefits
95# Ceramic Material High - strength and durability, suitable for harsh working environments.
Sheath and Gasket Installation Provides excellent sealing performance, preventing leakage.
High Working Temperature (up to 50℃) Can operate stably under high - temperature conditions, meeting the requirements of new - energy vehicle compressors.


C. Product Quality Assurance

  1. Insulation Static Check: 1000MΩ min. (1000VDC)
  2. Hi - Pot Static Check: 300VAC, 1 minute. Leakage current less than 0.5mA, no breakdown or flashover.
  3. Leak Test: 2.5MPa N2 pressure, no leak.
  4. Burst Test: 5.7MPa, no leak.
  5. Finish: Electroless nickel plating, thickness 2 - 4μm.

III. Trade Terms

We offer flexible trade terms to meet the different needs of our customers:



  • Payment Terms: We accept T/T (Telegraphic Transfer), L/C (Letter of Credit) to ensure the security of both parties' interests.
  • Minimum Order Quantity (MOQ): [Specify the MOQ here]
  • Price: [Provide the price range or specific price based on quantity]

IV. Shipping and Delivery

  1. Shipping Methods:
    • By sea: Suitable for large - quantity orders. We cooperate with reliable shipping companies to ensure the safety and timeliness of delivery.
    • By air: For urgent orders, we can arrange air freight to deliver the products quickly.
  2. Packaging: The products are packaged with anti - vibration and anti - collision materials to ensure that they are not damaged during transportation.

V. After - sales Service

We provide comprehensive after - sales service. If there are any quality problems with the products, we will provide solutions such as replacement or repair in a timely manner.



In conclusion, our sealing terminals for new - energy vehicle compressors combine excellent quality, reliable performance, and flexible trade and shipping options. We look forward to establishing long - term cooperation with customers from all over the world.
