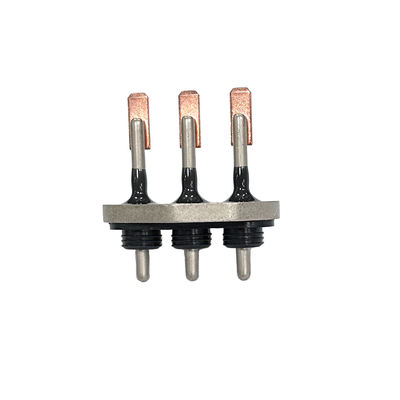

Bolts Mounted Hermetic Compressor Terminals 72V-810V Voltage Rating

5 pcs
MOQ
10 - 40 ¥
Price
Bolts Mounted Hermetic Compressor Terminals 72V-810V Voltage Rating
Features Gallery Product Description Request A Quote
Features
Specifications
Voltage Rating: 72V - 810V
Surface Treatment: Electroless Nickel Plating
Temperature Range: -70℃~+300℃
Material: 45Steel
Current: 10A - 30A
Mounting Type: Terminal Fixation-bolts
Highlight:

Bolts Mounted Hermetic Compressor Terminals

,

Hermetic Compressor Terminals 72V

Basic Infomation
Place of Origin: ShenZheng
Brand Name: SSCore
Certification: IATF16949
Payment & Shipping Terms
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Product Description

45Steel Bolts Mounted Hermetic Compressor Terminals 72V-810V Voltage Rating

Product Description:

We are capable of customizing different types of sintered seal terminals according to customer requirements. The performance parameters of the terminals we produce are as follows:

  • Material: 45 Steel
  • Hi-pot: 3000v leak current ≤ 0.5MA
  • IR: 1000V IR > 1000MΩ
  • Leak Test: 4MPa N2 pressure No leak
  • Burst Test: 5MPa No leak
  • Operating Temperature Range: -70°C - 300°C
Bolts Mounted Hermetic Compressor Terminals 72V-810V Voltage Rating 0Bolts Mounted Hermetic Compressor Terminals 72V-810V Voltage Rating 1Bolts Mounted Hermetic Compressor Terminals 72V-810V Voltage Rating 2

Features:

  • Product Name: Hermetic Compressor Terminals
  • Material: 45Steel
  • Current: 10A - 30A
  • Surface Treatment: Electroless Nickel Plating
  • Temperature Range: -70℃~+300℃
  • Voltage Rating: 72V - 810V
  • Ideal for Dental Air Compressor, Auto Shop Air Compressor, Dental Air Compressor Parts and Automotive Air Compressor.


Technical Parameters:

Our company offers all products with environmentally friendly electroless nickel plating. The thickness of the coating will be 3-5 microns. It is environment-friendly as it does not contain any mercury, lead, cadmium and hexavalent chromium. It is up to the standard of EU and has SGS environmental testing report. The products can be for electrical connections.



Applications:

SSCore Hermetic Compressor Terminals: Industrial Portable Air Compressor Accessories

SSCore Hermetic Compressor Terminals are AC compressor accessories designed for use in industrial portable air compressors and air conditioner compressors. Made from 45Steel and electroless nickel plated for long-lasting durability, these hermetic compressor terminals feature a terminal fixation-bolts mounting type and a voltage rating of 72V-810V. The current range for these hermetic compressor terminals is 10A-30A.

These hermetic compressor terminals come with a minimum order quantity of 5 pieces and are offered at a competitive price range of 10-40 $. They come with a vacuum package, and delivery time is 7-14 work days. Payment terms are L/C, D/A, T/T, D/P, and supply ability is 50w pieces a month.

SSCore hermetic compressor terminals are certified with IATF16949 and proudly made in ShenZheng. Get your industrial portable air compressor accessories today!



Customization:

Hermetic Compressor Terminals
Air Conditioner Compressor, Car AC Compressor, Electric Air Compressor

SSCore Hermetic Compressor Terminals are designed for use in air conditioner compressors, car AC compressors, and electric air compressors. The terminals are made of high-grade metal, and feature an electroless nickel plating for superior surface treatment. The voltage range is between 72V and 810V, and the temperature range is between -70℃ and +300℃. The current range is from 10A to 30A, and the terminals are mounted with terminal fixation-bolts.

Product Features:

  • Brand Name: SSCore
  • Place of Origin: ShenZheng
  • Certification: IATF16949
  • Minimum Order Quantity: 5 pieces
  • Price: 10-40 $
  • Packaging Details: vacuum package
  • Delivery Time: 7-14 work days
  • Payment Terms: L/C, D/A, T/T, D/P
  • Supply Ability: 50w pieces a month
  • Voltage Rating: 72V - 810V
  • Temperature Range: -70℃~+300℃
  • Surface Treatment: Electroless Nickel Plating
  • Current: 10A - 30A
  • Mounting Type: Terminal Fixation-bolts


Support and Services:

Hermetic Compressor Terminals Technical Support & Services

We provide a variety of services and support for our Hermetic Compressor Terminals. Our technical support team is available to assist with any questions or issues that may arise during the installation and use of our products.

Installation Services

We offer installation services for our Hermetic Compressor Terminals. Our technicians will ensure your product is installed correctly and your system is up and running as quickly as possible.

Maintenance and Repair Services

We offer maintenance and repair services for our Hermetic Compressor Terminals. Our technicians will inspect your system to ensure it is working properly and make any necessary repairs or adjustments to keep your system running smoothly.

Product Training

We offer product training for our Hermetic Compressor Terminals. Our technical support team can provide you with information and tips on how to get the most out of your product and ensure that it is being used correctly.
