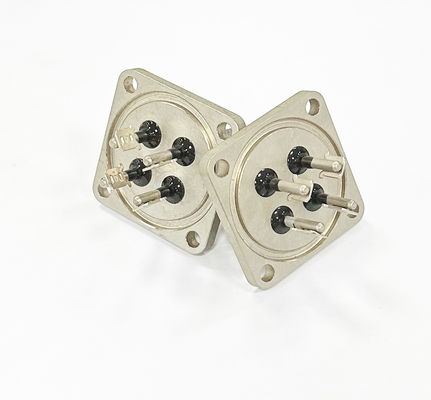

Electrical Terminal Motor Connection Plate 220V For Industrial Equipment

220V Electrical Terminal Connection Plate For Industrial Equipment

Product Description:

We are capable of customizing sintered seal terminals that up to customer’s expectations. Our terminals have some impressive performance parameters such as the following:

• Material: 45 Steel
• Hi-pot: 3000v with a leak current ≤ 0.5MA
• IR: 1000V with IR > 1000MΩ
• Leak Test: 4MPa N2 pressure with no leak
• Burst Test: 5MPa with no leak
• Operating Temperature Range: -70°C - 300°C



Features:

• Product Name: Connection Terminal Plate
• Insulating Property: 5000MΩ
• Surface Treatment: Electroless Nickel Plating
• Application: Electrical Equipment
• Connection: Screw
• Voltage: 220V
• Plate Board Connection
• Terminal Connection Board
• Terminal Plate Connection



Technical Parameters:

Our company products are all environmentally friendly due to their electroless nickel plating method.The coating thickness resulting from this process ranges from 3-5 microns. This operation does not contain any hazardous substances which advances the product up to the EU standards. These substances include, but are not limited to, mercury, lead, cadmium, and hexavalent chromium. We have got our SGS environmental testing report, which thoroughly confirms our products comply with the standards. We also guarantee our product's ability to function as electrical connections.



Applications:

Sscore Terminal Connection Plate is a reliable connection solution for electrical equipment. It is designed and manufactured with high-quality materials and advanced technologies, and meets the IATF16949 certification standard. The terminal connection plate is made in ShenZheng with electroless nickel plating, offering superior insulation performance up to 5000MΩ and an operational current of between 30A and 300A. The connection between the terminal plate and the electrical equipment is secured using a screw, ensuring stable and reliable connections. The minimum order quantity for Sscore Terminal Connection Plate is 5 pieces, and the price ranges from 300 to 800 $. Packing is done with a cato box, and delivery time is 7 to 14 working days. Payment terms include L/C, D/A, T/T, and D/P. The supply ability is 10w pieces a month.

Customization:

Sscore provides customized plate board connection terminal services with IATF16949 certification, which can be used in electrical equipment. Our products are made in ShenZheng and have a minimum order quantity of 5 pieces. They come in a cato packing and the delivery time is 7 to 14 work days. The payment terms can be L/C, D/A, T/T, D/P and the price ranges from 300 to 800 $. We have a supply ability of 10w pieces a month.

The voltage of our connection terminal boards is 220v, and the connection type is screw. The insulating property is up to 5000MΩ and the current range is from 30A to 300A.



Support and Services:

We provide professional technical support and service for our Connection Terminal Plate products. Our experienced technical staff is available to provide comprehensive advice, technical support, and troubleshooting assistance for our customers.

We can provide you with:

• Free technical advice
• Technical support via phone, email or live chat
• Software and firmware updates
• Repair and replacement services
• Product manuals and documentation

We are committed to providing the highest quality technical support and service for our customers, and we strive to exceed your expectations.
