Home /Products/Hermetic EV Connector/30A Hermetic Hermetic Electrical Vehicle Connectors 4J28 Nickel Plated Custom

30A Hermetic Hermetic Electrical Vehicle Connectors 4J28 Nickel Plated Custom

5 pcs
MOQ
10 - 40 ￥
Price
30A Hermetic Hermetic Electrical Vehicle Connectors 4J28 Nickel Plated Custom
Features Gallery Product Description Request A Quote
Features
Specifications
Current Rating: 30A
Material: 45Steel
Mounting Type: Terminal Fixation-bolts
Voltage Rating: 600V
Product Name: Hermetic EV Connector
Surface Treatment: Electroless Nickel Plating
Highlight:

Hermetic Electrical Vehicle Connector

,

Hermetic Electrical Connectors 30A

,

Nickel Plated Hermetic Electrical Connectors
Basic Infomation
Place of Origin: ShenZheng
Brand Name: SSCore
Certification: IATF16949
Payment & Shipping Terms
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Product Description

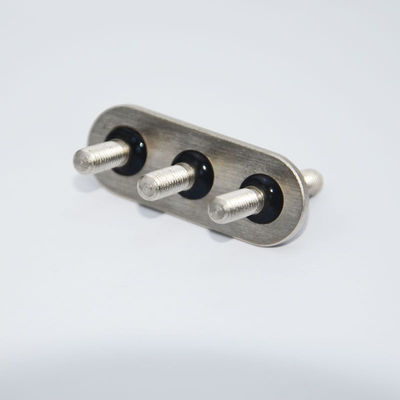

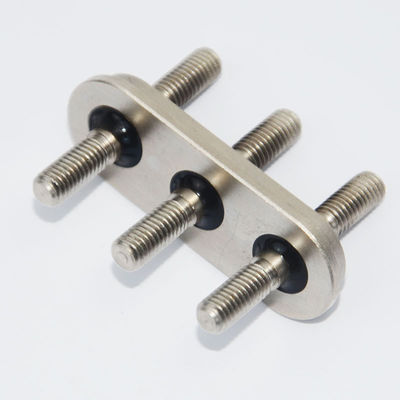

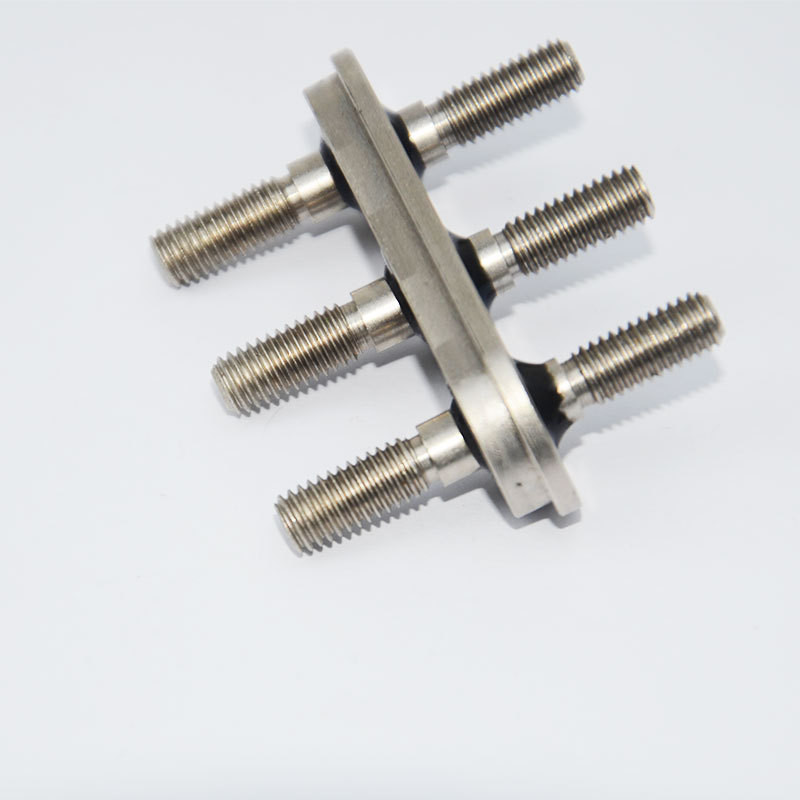

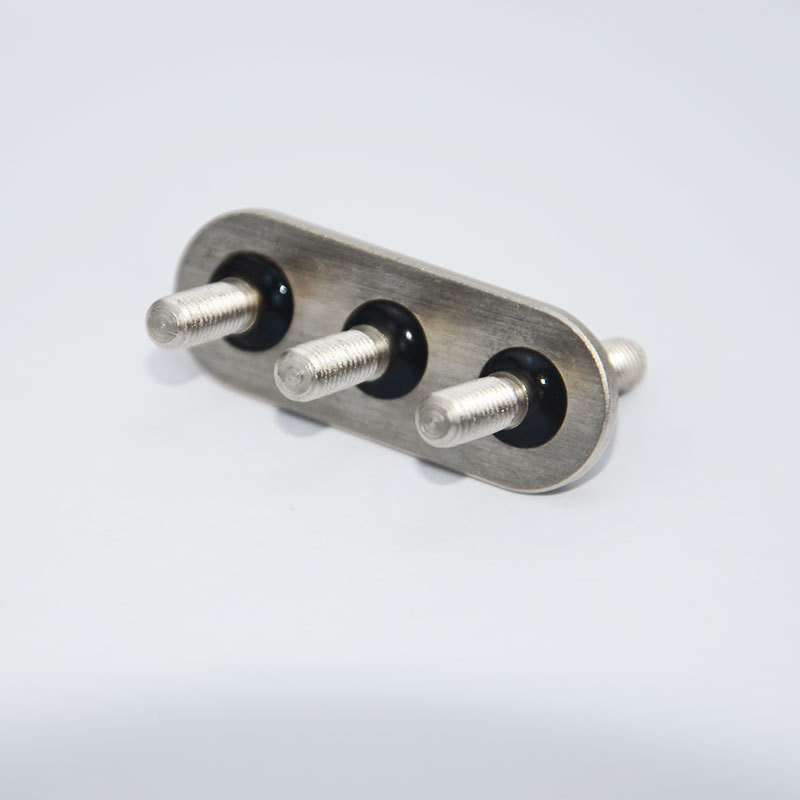

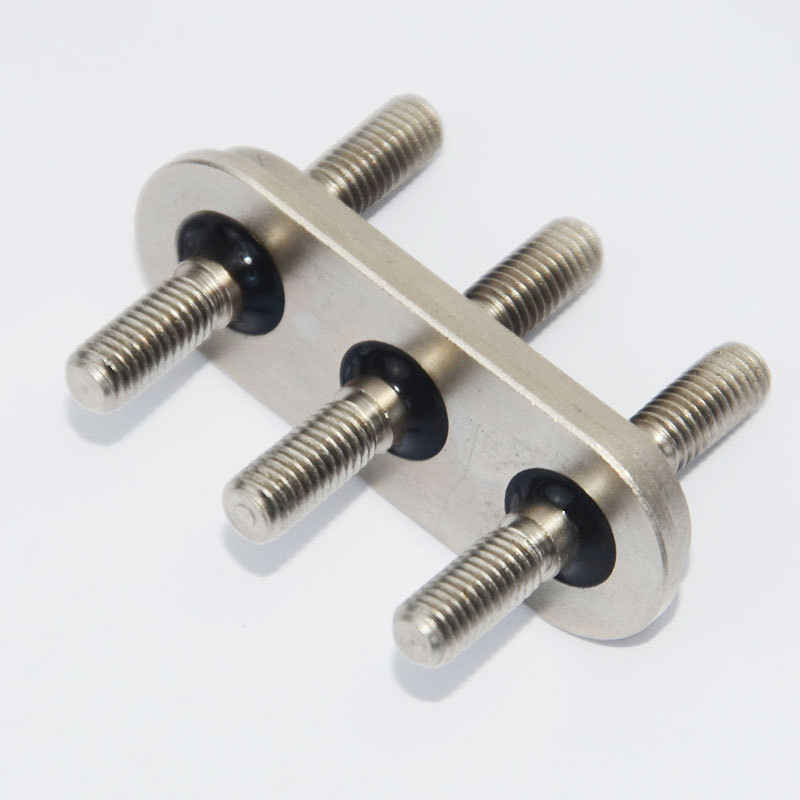

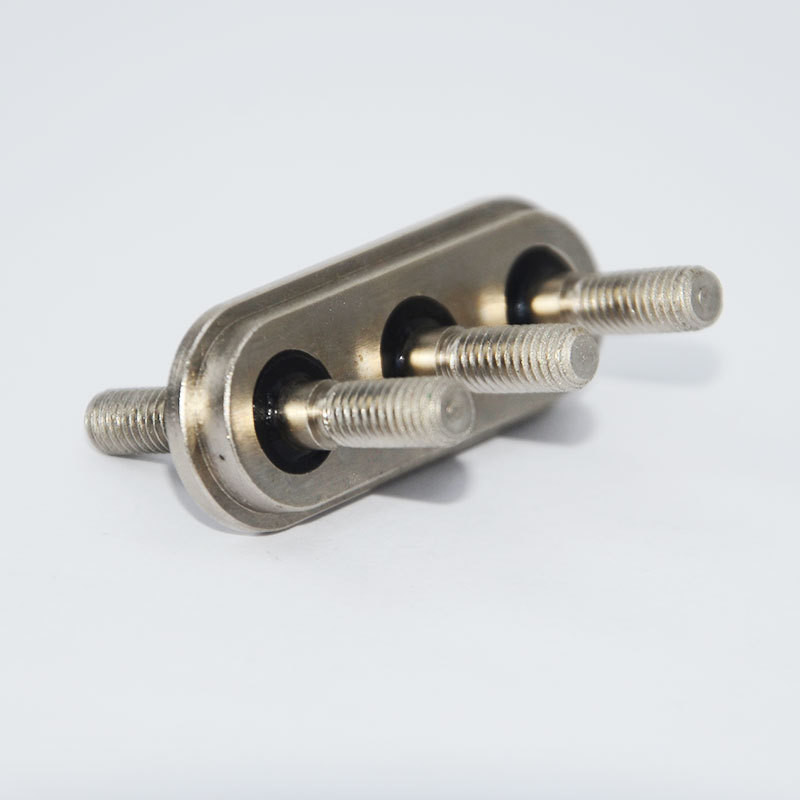

30A Hermetic Electric Vehicle Connector 4J28 Nickel-Plated



We can customize different types of sintered seal terminals according to customer requirements. The performance parameters of the terminals we produce can be as follows:



1,Material : 45 Steel
2,Hi-pot : 3000v leak current ≤ 0.5MA
3,IR:1000V IR > 1000MΩ
4,leak Test: 4MPa N2 pressure No leak
5,Burst Test:5MPa No leak
6,Operating Temperature Range:-70°C - 300°C30A Hermetic Hermetic Electrical Vehicle Connectors 4J28 Nickel Plated Custom 030A Hermetic Hermetic Electrical Vehicle Connectors 4J28 Nickel Plated Custom 130A Hermetic Hermetic Electrical Vehicle Connectors 4J28 Nickel Plated Custom 230A Hermetic Hermetic Electrical Vehicle Connectors 4J28 Nickel Plated Custom 3

All products of the company are environmentally friendly electroless nickel plating method, coating thickness of 3-5 microns. Environmentally friendly nickel coating does not contain mercury, lead, cadmium and hexavalent chromium and other harmful substances, up to EU standards, with SGS environmental testing report. The role of electrical connections.
