Custom Hermetic EV Connector Air Conditioning Terminal Posts Three Pin

5pcs
MOQ
¥ 40.00 5PCS starting batch ¥ 35.00 100-999PCS ¥ 28.00 ≥1000PCS
Price
Custom Hermetic EV Connector Air Conditioning Terminal Posts Three Pin
Features Gallery Product Description Request A Quote
Features
Specifications
High Insulation Performance: Static Test At 500VDC, Insulation Greater Than 5000MΩ
High Sealing Performance: 2.5MPa Does Not Leak
High Voltage Resistance: ≥2000VAC, Leakage Current ≤0.5mA
Corrosion Resistance: Refer To The Salt Spray Standard GB/T2423.17, Which Can Reach The Level Of 8 Or Above
Resistant To Various Refrigerant And Refrigerant Oil: R114a,R410a,R22 And CO2 Refrigerant
Thermal Shock Resistance: It Can Maintain Normal Operation In The Environment Of Minus 40℃ To 300℃
Working Current: 72V-810V
Highlight:

Custom Hermetic EV Connector

,

Three Pin Hermetic EV Connector
Basic Infomation
Place of Origin: ShenZheng
Brand Name: SSCore
Certification: ISO16949
Model Number: SC-4-130
Payment & Shipping Terms
Packaging Details: Cato package 9*7
Delivery Time: 7-14 work days
Payment Terms: L/C, T/T, D/A
Supply Ability: 12000 per day
Product Description

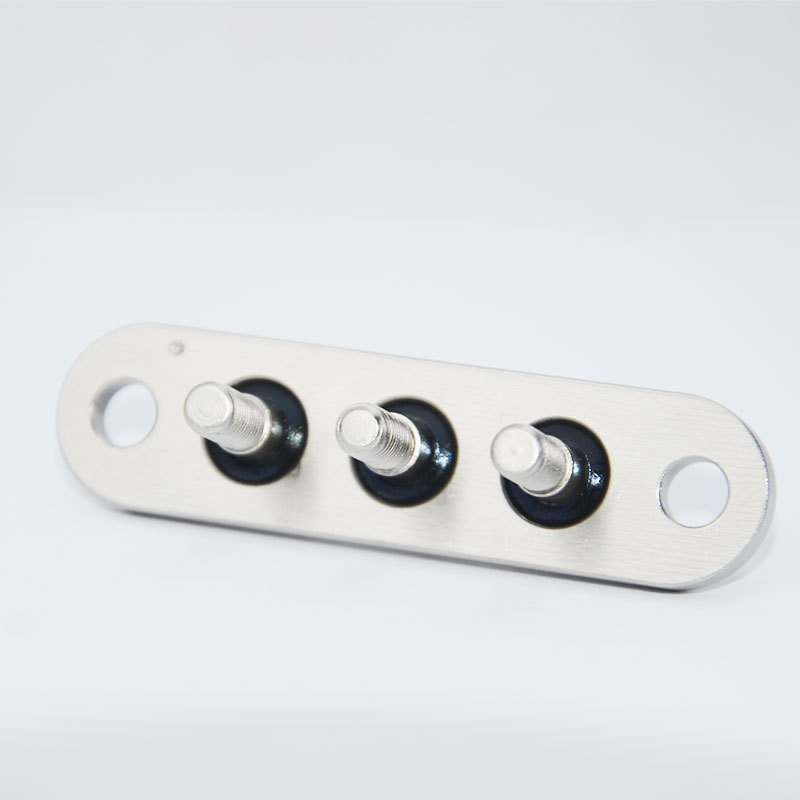

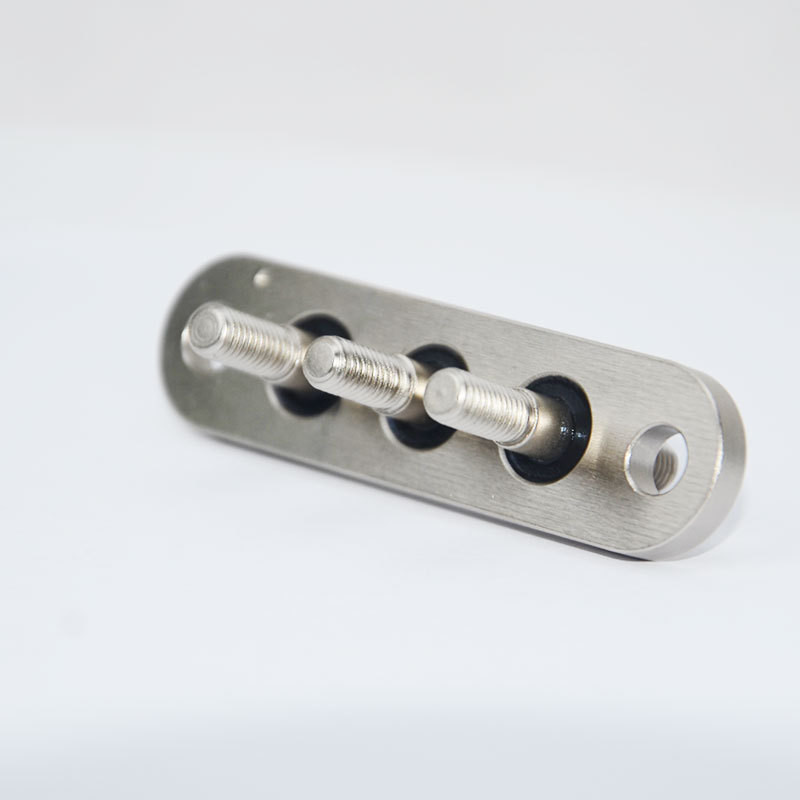

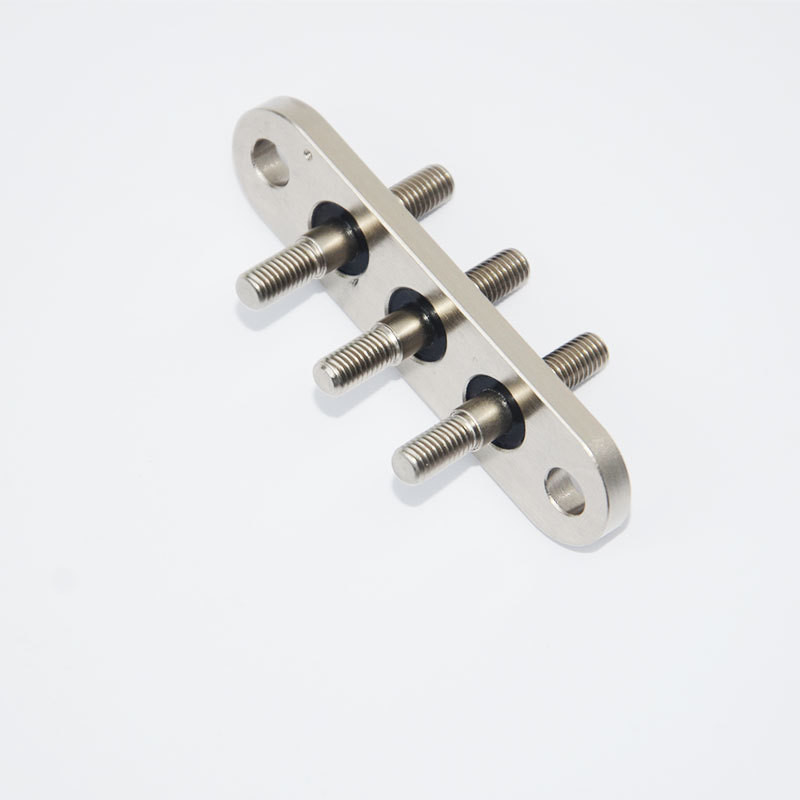

EV Air Conditioning Terminal Posts [ Three Pin]



Custom Hermetic EV Connector Air Conditioning Terminal Posts Three Pin 0Custom Hermetic EV Connector Air Conditioning Terminal Posts Three Pin 1 Custom Hermetic EV Connector Air Conditioning Terminal Posts Three Pin 2

The sintered sealed terminal post is mainly used in the 72V-810V compressor of automobile air conditioner, playing the role of sealing, insulating, voltage resistance and pressure resistant electrical connection
