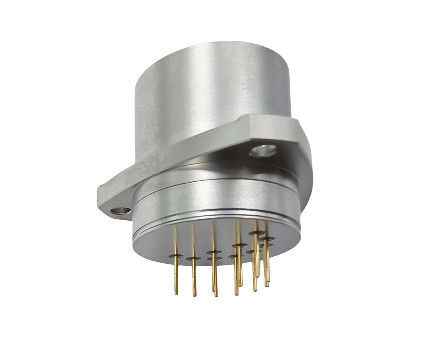

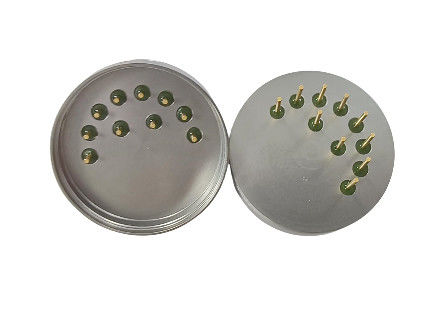

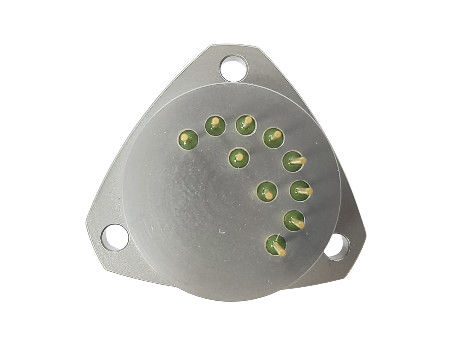

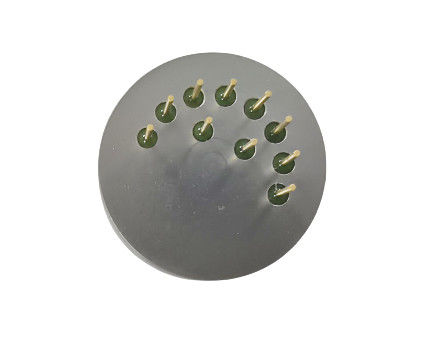

8 - Millimeter - Long Steel Needle Made Of 321 Stainless Steel With Gold - Plated Surface For 10 - Core Connector

5PCS
MOQ
3$-5$/PCS
Price
8 - Millimeter - Long Steel Needle Made Of 321 Stainless Steel With Gold - Plated Surface For 10 - Core Connector
Features Gallery Product Description Request A Quote
Features
Specifications
THERMAL CYCLE: -60°C ~ +100°C
BODY MATERIALS: 321 STAINLESS STEEL
PIN MATERIALS: ALLOY 52
GLASS MATERIALS: CORNING 9013 OR EQUIVALENT
INSULATOR RESISTANCE: 100MΩ@100VDC
Highlight:

10 core Steel Needle

,

321 Stainless Steel Needle

,

Gold Plated Steel Needle
Basic Infomation
Place of Origin: China
Brand Name: SSCOre
Certification: ISO9001/ISO1400
Model Number: 41-X0839
Payment & Shipping Terms
Product Description

Product Description

This product is crafted with precision using high - quality materials, tailored to meet the requirements of applications demanding reliability, hermeticity, and stable electrical performance. The body, constructed from 321 stainless steel, offers excellent corrosion resistance and mechanical strength. This makes it suitable for use in various environments, from industrial settings to more corrosive atmospheres. The pins, made of Alloy 52, are designed to provide reliable electrical connections. Paired with Corning 9013 or equivalent glass, the product ensures proper insulation and hermetic sealing.

Features

Feature Description
Burr - free Meticulous manufacturing ensures no burrs are present, which is crucial for smooth operation and to prevent damage to other components.
High Hermeticity Maintains a hermeticity level of 1X10^ - 8 HE CC.STD/SEC @ 1 ATM, ensuring a highly sealed environment that can protect internal components from external contaminants.
Wide Thermal Cycle Can withstand thermal cycling from - 60°C to + 100°C, making it suitable for applications where significant temperature fluctuations are expected.
Premium Pin Finish Pins have a minimum gold plate of 30μ" over an electro - deposited nickel layer of 100μ" minimum. This finish not only enhances electrical conductivity but also provides corrosion resistance.
High Insulator Resistance Exhibits an insulator resistance of 100MΩ@100VDC, ensuring effective electrical isolation between components.
Crack - free Glass After fusing, no cracks are visible on the glass surface when magnified X16, ensuring the integrity of the insulation and hermetic seal.
Standard Tolerance Unless otherwise specified, follows ISO 2768 - mk for tolerance, ensuring consistent and interchangeable parts.


Technical Parameters

Parameter Specification
Body Material 321 Stainless Steel
Pin Material Alloy 52
Glass Type Corning 9013 or equivalent
Hermeticity 1X10^ - 8 HE CC.STD/SEC @ 1 ATM
Thermal Cycle - 60°C to + 100°C
Pin Finish Gold plate 30μ" min. over electro - deposited nickel 100μ" min.
Insulator Resistance 100MΩ@100VDC
Tolerance ISO 2768 - mk


Applications

This product can be used in a variety of industries such as aerospace, where components need to withstand extreme temperatures, high hermeticity, and reliable electrical performance. It can also be applied in high - end electronic devices that require stable electrical connections and protection from environmental factors.

Customization

We understand that different customers may have unique requirements. Our team is available to discuss customization options, whether it's adjusting the materials based on specific environmental needs, modifying the dimensions within the tolerance range, or changing the finish requirements to meet particular electrical or corrosion - resistance demands.

Support and Services

  • Technical Support: Our experienced technical team is on standby to assist with product selection, installation guidance, and troubleshooting. Whether you have questions about the product's compatibility or need help with resolving an issue, we're here to help.
  • Warranty: We offer a comprehensive warranty period to cover any manufacturing defects. If the product fails to meet the specified performance criteria within the warranty period, we will repair or replace it at no cost to the customer.
  • After - sales Service: We provide after - sales support, including maintenance advice, spare parts supply, and product upgrades. Our goal is to ensure the long - term performance and satisfaction of our customers.

Packing and Shipping

  • Packing: The product is carefully packaged using anti - static and shock - absorbing materials to protect it during transit. This ensures that it reaches the customer in perfect condition, free from any damage caused by handling or transportation.
  • Shipping: We collaborate with reliable shipping carriers to offer a range of shipping options. Customers can choose the shipping method that best suits their needs, whether it's for fast delivery or cost - effective transportation.

FAQ

  • Q: What is the material of the body?
  • A: The body is made of 321 stainless steel.
  • Q: What is the minimum thickness of the gold plate on the pins?
  • A: The minimum thickness of the gold plate on the pins is 30μ".
  • Q: Does the product come with a warranty?
  • A: Yes, we offer a warranty to cover manufacturing defects.

8 - Millimeter - Long Steel Needle Made Of 321 Stainless Steel With Gold - Plated Surface For 10 - Core Connector 08 - Millimeter - Long Steel Needle Made Of 321 Stainless Steel With Gold - Plated Surface For 10 - Core Connector 1
