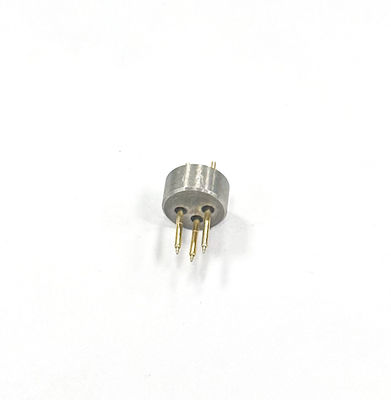

OEM Hermetically Sealed Terminal 30A With 1000V Voltage Rating

Salt Spray Resistance 48h Hermetically Sealed Unit With 1000V Voltage Rating

Product Description:

We are able to modify sintered seal terminals according to customers' special needs. The performance parameters of those terminals typically include:

• Material: 45 Steel
• Hi-pot: 3000v. The leak current should be no more than 0.5MA.
• IR: 1000V. The IR should be higher than 1000MΩ.
• Leak Test: 4MPa N2 pressure. There should be no leak.
• Burst Test: 5MPa. There should be not leak.
• Operating Temperature Range: -70°C to 300°C.

Features:

• Product Name: Hermetically Sealed Terminal
• Material: 45 Steel
• Impact Resistance: 200N
• Temperature Rating: -70°C - 300°C
• Insulation Resistance: 1000MΩ
• Current Rating: 20A-30A
• Hermetically Sealed Kit
• Hermetically Sealed Device

Technical Parameters:

Our company produces products that are manufactured completely through an environmentally friendly electroless nickel plating method with a coating thickness of 3-5 microns. This coating does not contain any mercury, lead, cadmium, or hexavalent chromium and other hazardous substances, meeting the strictest EU standards and equipped with a SGS Environmental Test Report.

This process provides electrical connections that help improve performance and electrical conductivity.

Applications:

The SSCore Hermetically Sealed Terminal is a high-performance, reliable product that is certified to the IATF16949 standard. This terminal is manufactured from 45 steel and is designed to withstand temperatures from -70°C to 300°C. It is hermetically sealed to ensure airtightness and includes insulation resistance up to 1000MΩ, dielectric strength up to 3500VAC, and impact resistance up to 200N. The minimum order quantity is 5 pcs and prices range from 10 to 40 $. Packaging is vacuum sealed and delivery time is 7 to 14 work days. Payment terms are L/C, D/A, T/T, D/P. The Hermetically Sealed Terminal is made in ShenZheng and Supply Ability is 50w pieces a month.

Customization:

Brand Name: SSCore

Place of Origin: ShenZheng

Certification: IATF16949

Minimum Order Quantity: 5 pcs

Price: 10 - 40 $

Packaging Details: vacuum package

Delivery Time: 7 - 14 work days

Payment Terms: L/C, D/A, T/T, D/P

Supply Ability: 50w pieces a month

Temperature Rating: -70°C - 300°C

Voltage Rating: 1000V

Dielectric Strength: 3500VAC

Salt Spray Resistance: 48h The Rusted Area < 5%

Insulation Resistance: 1000MΩ

Hermetically Sealed Kit, Hermetically Sealed Kit, Hermetically Sealed Device, Hermetically Sealed Terminal from SSCore Certified by IATF16949
