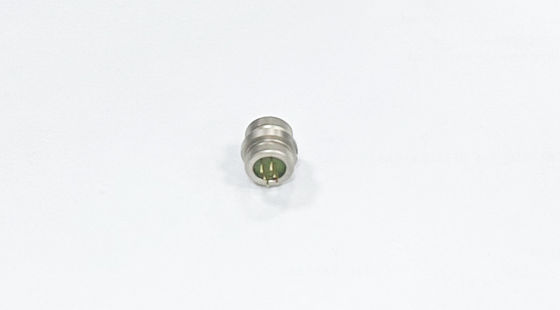

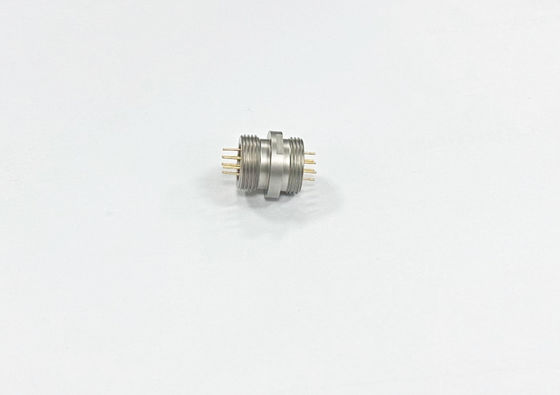

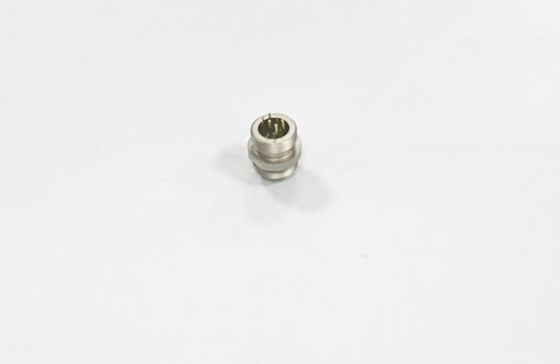

Hermetic Feedthrough Connectors Sealed Type For Industrial Applications
Product Description:
We provide customized sintered seal terminals based on customers' needs. The performance parameters of these terminals are as follows:
- Material: 45 Steel
- Hi-pot: 3000v leak current ≤ 0.5MA
- IR: 1000V IR > 1000MΩ
- Leak Test: 4MPa N2 pressure No leak
- Burst Test: 5MPa No leak
- Operating Temperature Range: -70°C - 300°C
Features:
- Product Name: Hermetic Feedthrough Connectors
- Contact Plating: Electroless Nickel
- Connector Type: Hermetic
- Manufacturer: SSCore
- Material: 45 Steel
- Core column: Φ0.5mm-Φ3.2mm
- Main Features: Hermetic Feedthrough Assemblies, Hermetic Feedthrough Assemblies, Hermetic Feedthrough Adapters
Technical Parameters:
Our company is devoted to providing all our products with an environmentally friendly electroless nickel plating method. The coating thickness for all our products is between 3-5 microns. What is more, our nickel coating does not include any dangerous substances like mercury, lead, cadmium and hexavalent chromium. We hold ourselves to the highest possible standards, and have a SGS environmental testing report to prove it. The coating gives our products electric adaptability.
Applications:
Our sintered joints are mainly applied to pressure, temperature, signal and other sensors for sealing, insulation and pressure signal transmission.
They feature a reliable seal, heat resistance, environmental resistance, chemical stability and vibration proof, so they can block the effects of external factors from the sensor environment and prevent the components from leaking.
With these sintered joints, we offer customers ideal solutions to help improve efficiency while controlling costs.
Customization:
Hermetic Feedthrough Connectors
Brand Name: SSCore
Place of Origin: ShenZheng
Minimum Order Quantity: 5 pcs
Price: 10 - 60 $
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Temperature Rating: -70°C To 300°C.
Manufacturer: SSCore
Contact Plating: Electroless Nickel
Product Name: Hermetic Feedthrough Connectors
Material: 45 Steel
Features:
- Hermetic Seal Connectors
- Hermetic Sealing Connectors
- Hermetic Sealing Connectors
Support and Services:
Hermetic Feedthrough Connectors Technical Support and Service
At Hermetic Feedthrough, we understand the importance of reliable technical support and service for our customers. Our experienced team is available to answer any questions or inquiries you may have about our Hermetic Feedthrough Connectors. We provide technical support and service through phone, email, and live chat.
We also provide a variety of helpful resources, including installation guides, product specifications, and FAQs. Additionally, we offer a selection of online tutorials and video tutorials to walk you through the installation process.
If you need assistance with your Hermetic Feedthrough Connectors, please contact us today and one of our knowledgeable representatives will be more than happy to help.
