Home /Products/Hermetic Feedthrough Connectors/3000v Hermetic Feedthrough Connectors By SSCore With Mounting Screw

3000v Hermetic Feedthrough Connectors By SSCore With Mounting Screw

5 pcs
MOQ
10 - 60 ￥
Price
3000v Hermetic Feedthrough Connectors By SSCore With Mounting Screw
Features Gallery Product Description Request A Quote
Features
Specifications
Temperature Rating: -70°C To 300°C.
Product Name: Hermetic Feedthrough Connectors
Connector Type: Hermetic
Contact Plating: Electroless Nickel
Material: 45 Steel
Manufacturer: SSCore
Core Column: Φ0.5mm-Φ3.2mm
Mounting Type: Mounting Screw
Highlight:

3000v Hermetic Feedthrough Connectors

,

Hermetic Feedthrough Connectors Mounting Screw
Basic Infomation
Place of Origin: ShenZheng
Brand Name: SSCore
Payment & Shipping Terms
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Product Description

45 Steel Hermetic Feedthrough Connectors By SSCore With Mounting Screw

Product Description:

We are able to manufacture sintered seal terminals according to customer specifications. The performance parameters of the terminals are as follows:

  • Material: 45 Steel.
  • Hi-pot: 3000v with a leak current of ≤ 0.5MA.
  • IR: 1000V, with an IR of > 1000MΩ.
  • Leak Test: 4MPa N2 pressure, without any leak.
  • Burst Test: 5MPa, with no leak.
  • Operating Temperature Range: -70°C to 300°C.

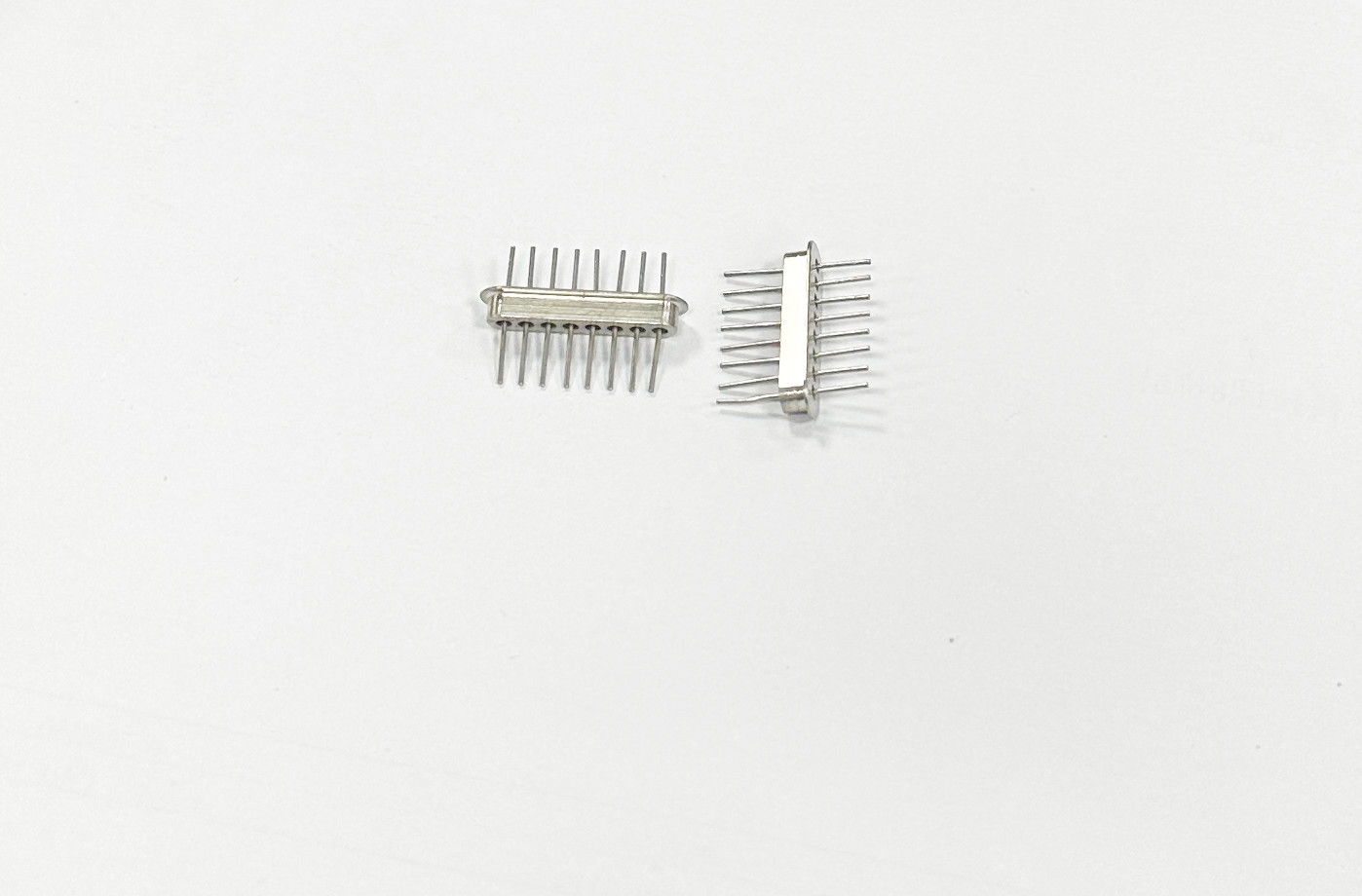

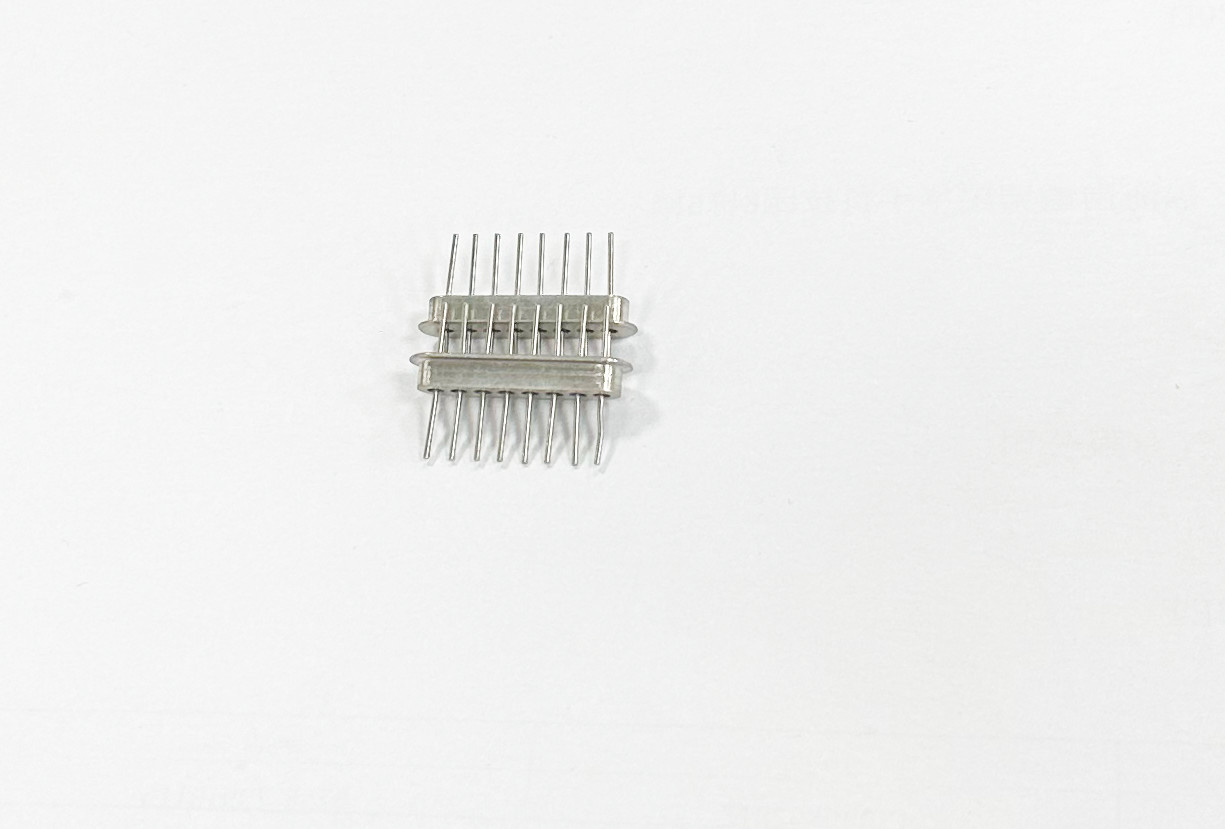

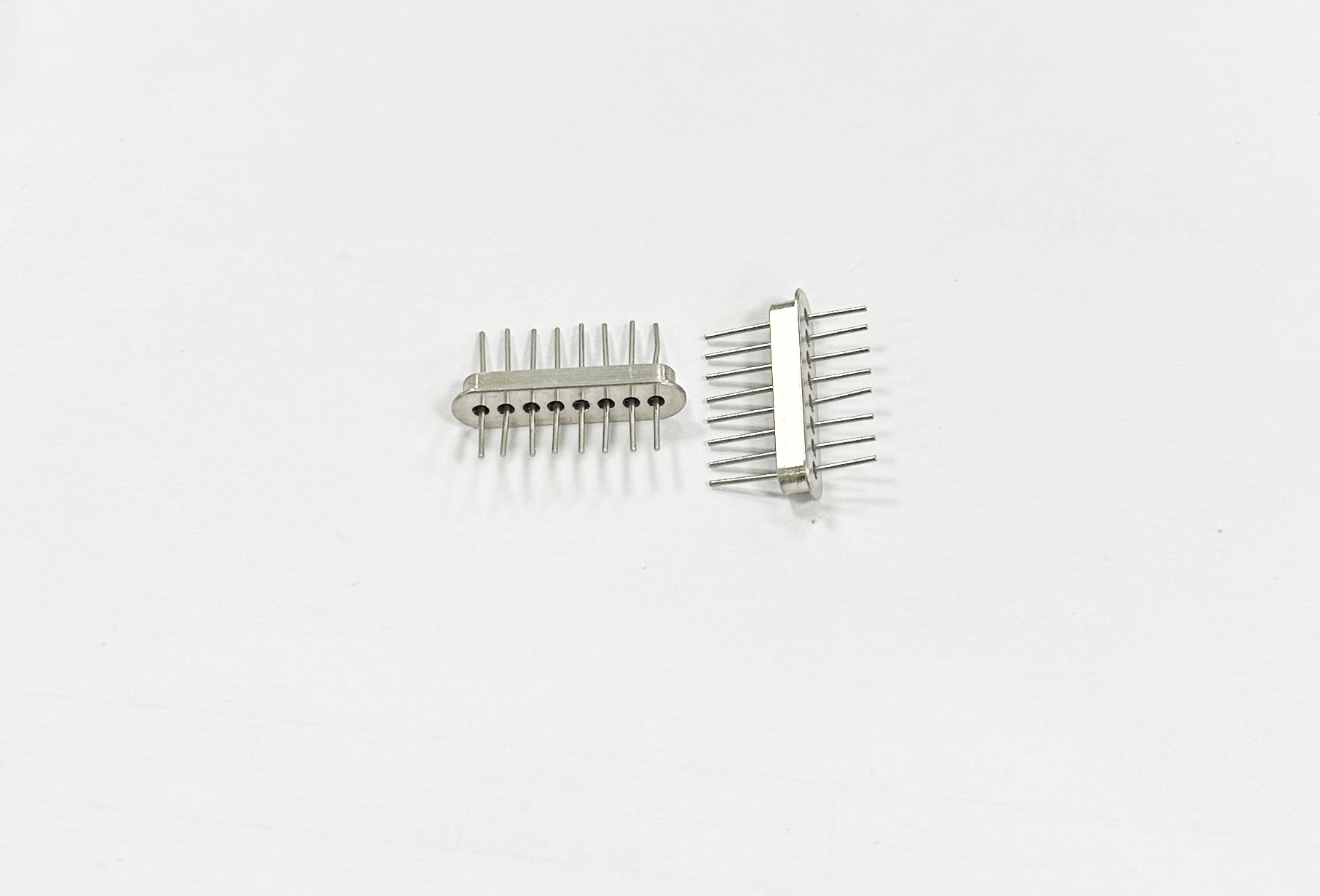

3000v Hermetic Feedthrough Connectors By SSCore With Mounting Screw 03000v Hermetic Feedthrough Connectors By SSCore With Mounting Screw 13000v Hermetic Feedthrough Connectors By SSCore With Mounting Screw 2
