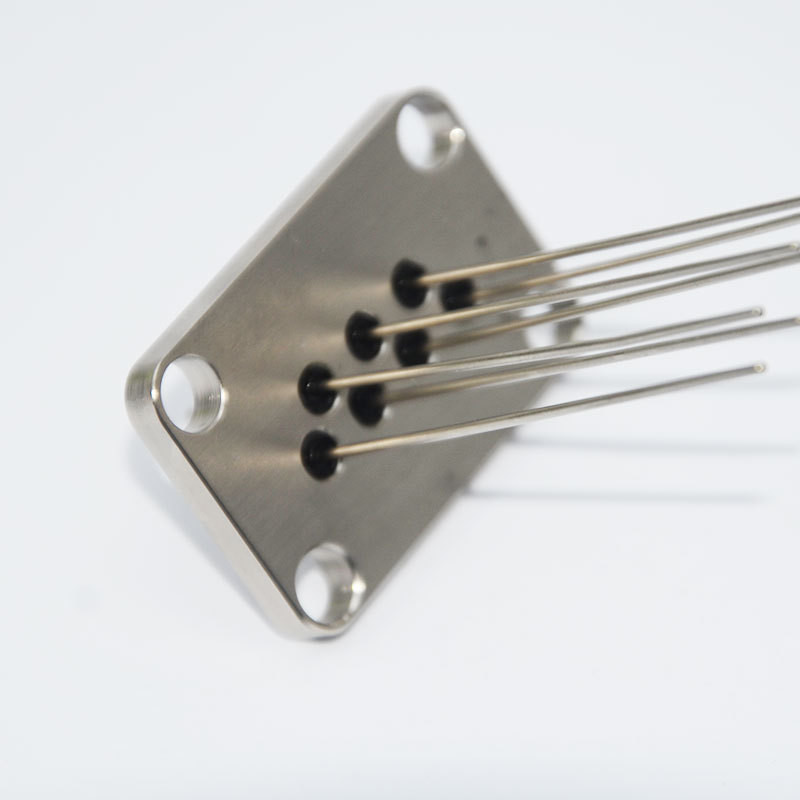

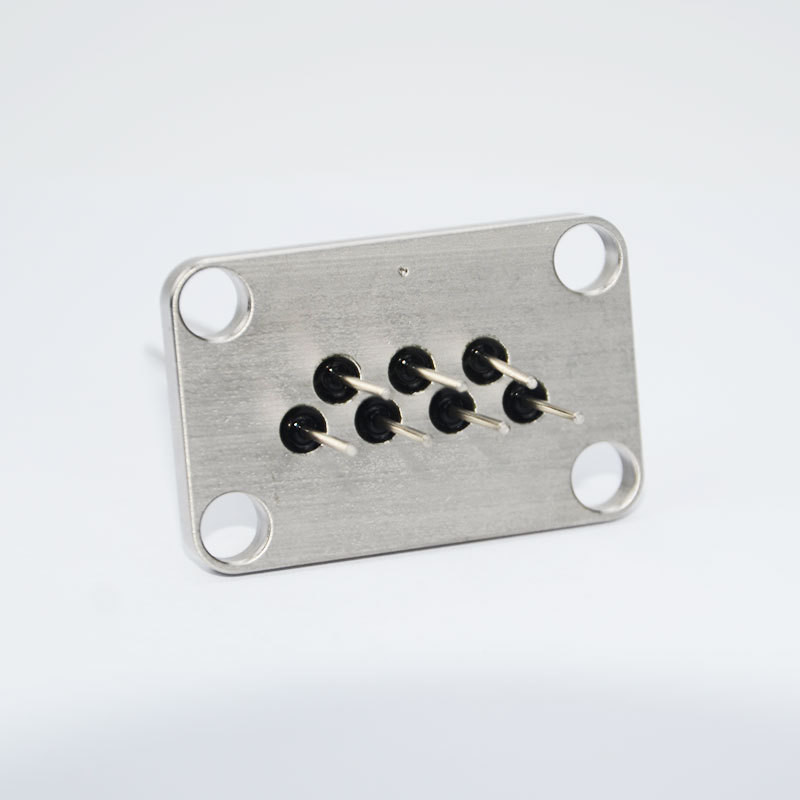

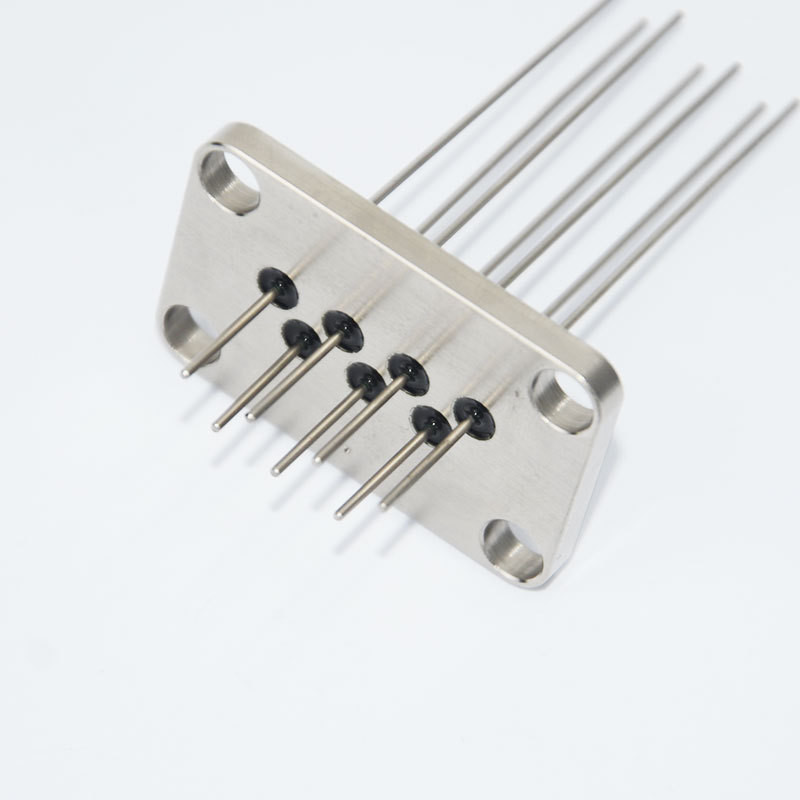

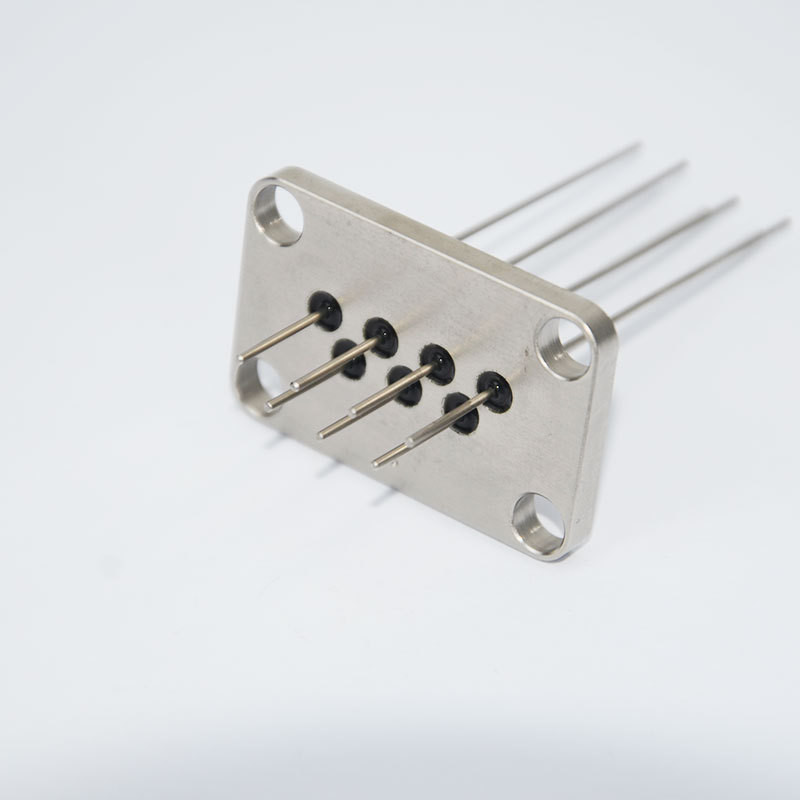

Electroless Nickel Hermetic Feedthrough Connectors

Electroless Nickel Hermetic Feedthrough Connectors By SSCore -70°C To 300°C

Product Description:

We provide various kinds of customized sintered seal terminals to meet different needs of customers. All the performance parameters of the terminals we produce meet the highest standards of quality. For example, the parameters include material specifically selected as 45 Steel; Hi-pot tested with 3000V and the leakage current lower than 0.5MA; Insulation resistance tested at 1000V and higher than 1000MΩ; Leak Test done under pressure of 4 MPa with no leakage; Burst Test with 5MPa and no leakage; Operating Temperature Range from -70°C to 300°C.

Features:

• Product Name: Hermetic Feedthrough Connectors
• Connector Type: Hermetic
• Core column: Φ0.5mm-Φ3.2mm
• Contact Plating: Electroless Nickel
• Temperature Rating: -70°C To 300°C.
• Manufacturer: SSCore
• Keywords: Hermetic Feedthrough Adapters, Hermetic Cable Connectors, Hermetic Fitting Connectors

Technical Parameters:

Our company specializes in providing environmentally friendly electroless nickel plating services. The coating is about 3 to 5 microns thick and meets all EU standards. No harmful elements such as mercury, lead, cadmium or hexavalent chromium are included. Furthermore, for more reassurance, we have a SGS environmental testing report. This method of plating is perfect for electrical contacts.

Applications:

Our sintered joints can be widely used in many different aspects, such as pressure, temperature, signal and other sensors. They are mainly used for sealing, insulation and pressure signal transmission.

No matter in what industry, these sintered joints can be used to give superior performance. They are reliable and can provide excellent performance when it comes to sealing, insulation and signal transfer.

These sintered joints have gained good reputation in many industries due to its superior features, such as strong seals, reliable insulation and excellent signal transfer.

Customization:

SSCore is a leading manufacturer of Hermetic Feedthrough Connectors. Our products are widely used in various applications and industries, such as aviation, military, medical, data and communication, power, automotive, mobile communication, etc. Our Hermetic Feedthrough Connectors are designed to provide reliable and robust connections for high-vibration environments and harsh environmental conditions. They are designed to withstand extreme temperatures ranging from -70°C to 300°C, and feature an Electroless Nickel contact plating for superior corrosion protection.

Brand Name: SSCore
Place of Origin: ShenZheng
Minimum Order Quantity: 5 pcs
Price: 10 - 60 $
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Connector Type: Hermetic
Contact Plating: Electroless Nickel
Manufacturer: SSCore
Temperature Rating: -70°C To 300°C.
Product Name: Hermetic Feedthrough Connectors

We specialize in the production of Hermetic Feedthrough Devices, Hermetic Feedthrough Terminals, Hermetic Feedthrough Assemblies and Hermetic Feedthrough Connectors. Our products are highly reliable and of superior quality. We offer excellent customer service and competitive pricing, and have a team of professionals that are ready to assist you with any inquiries or needs you may have.

Support and Services:

We provide comprehensive technical support and service for our Hermetic Feedthrough Connectors.

Our experienced technicians are available to answer any questions you may have and provide support for installation, troubleshooting, and maintenance.

We also provide custom solutions for specific application requirements. We can design and manufacture connectors to meet your exact specifications.

Our team is dedicated to providing the best customer service and the highest quality products.
