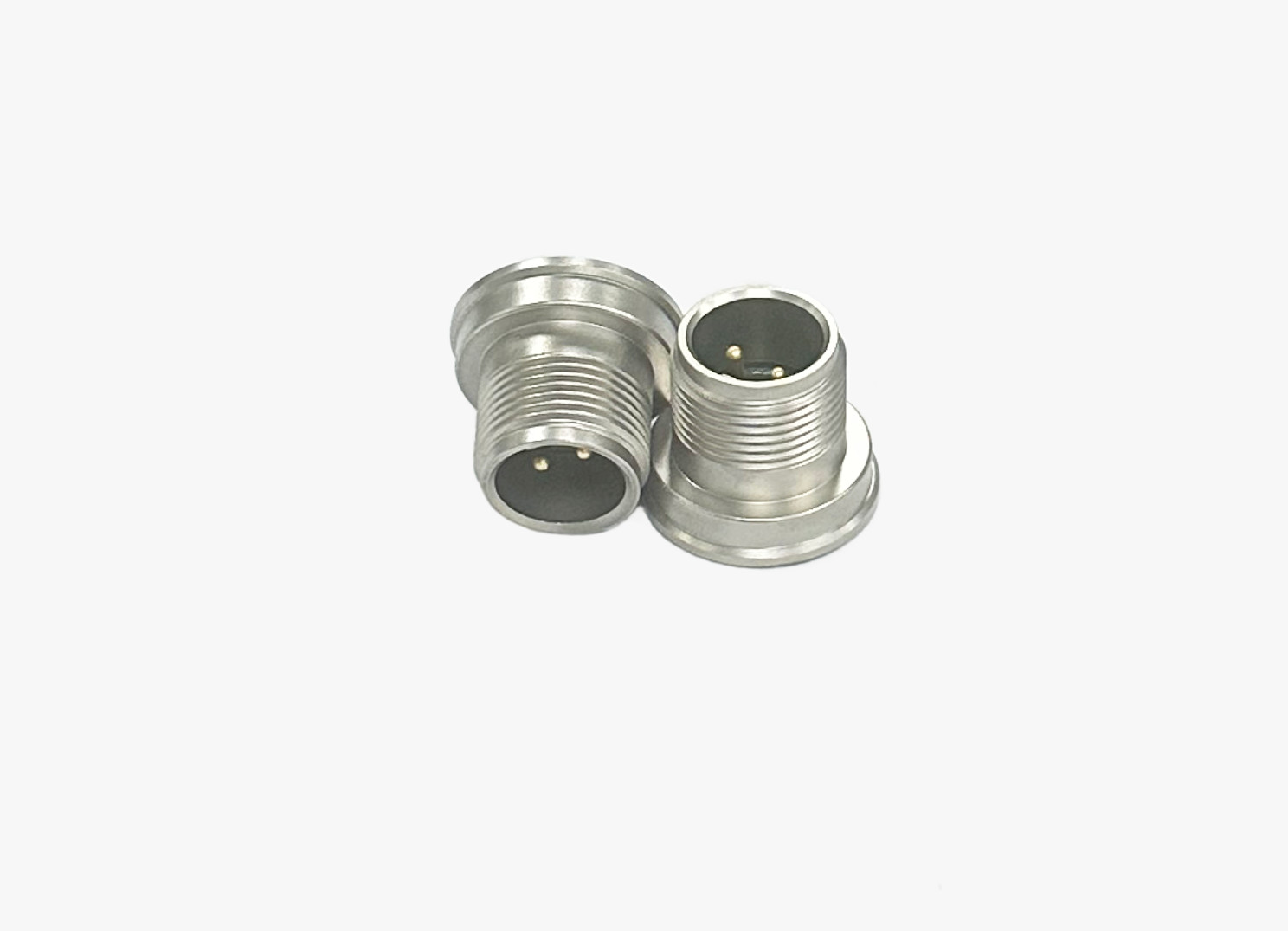

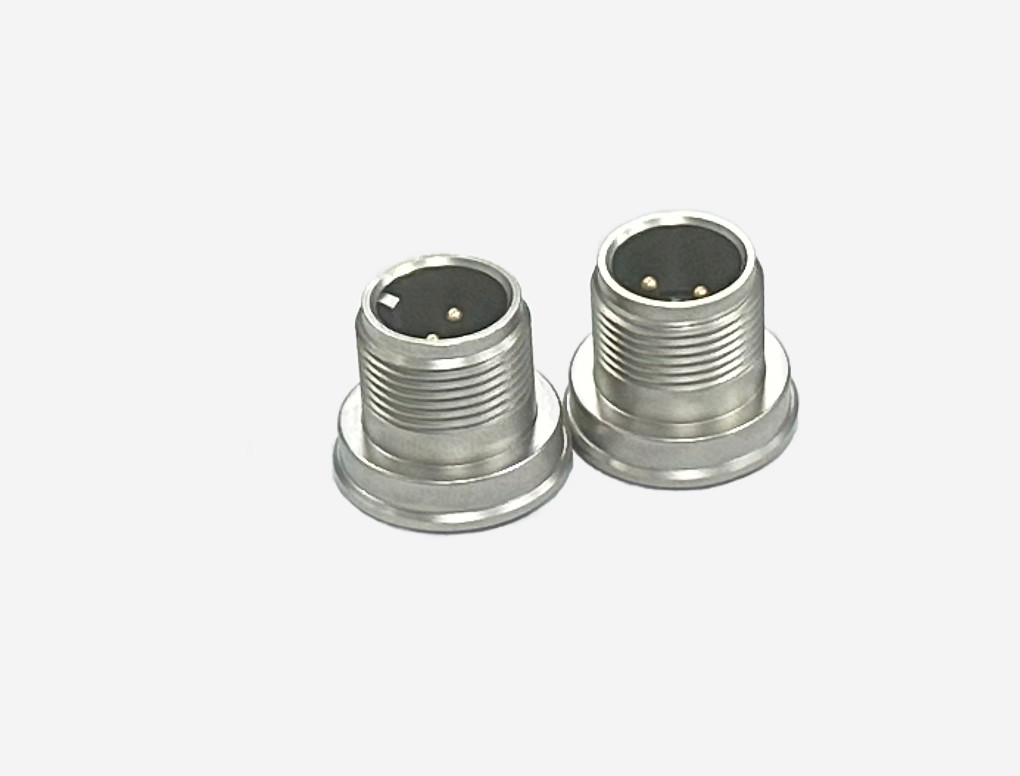

Hermetic Feedthrough Connectors - Connectors For Industrial Applications
Product Description:
We can customize various sintered seal terminals according to customer specifications. Our terminals are made from 45 Steel, and they are highly reliable. The Hi-pot of the terminals is 3000v with leak current no more than 0.5MA. IR is 1000V and simulated resistances are more than 1000MΩ. Also, after the leak and burst tests at 4MPa and 5MPa nitrogen pressure respectively, no leakage is found in these terminals. These terminals are able to work in extreme temperature conditions from -70°C to 300°C.
Features:
- Product Name: Hermetic Feedthrough Connectors
- Material: 45 Steel
- Contact Plating: Electroless Nickel
- Core column: Φ0.5mm-Φ3.2mm
- Connector Type: Hermetic
- Mounting Type: Mounting Screw
- Specialties: Hermetic Feedthrough Terminals, Hermetic Feedthrough Adapters, Hermetic Feedthrough Couplers
Technical Parameters:
Our company provides environmentally friendly electroless nickel plating services. The coating thickness is up to 3-5 microns.
It is safe to use since the materials do not contain mercury, lead, cadmium, hexavalent chromium, or other hazardous substances. Also, it should adhere to EU standards and comes with a SGS environmental testing report.
This product provides excellent electrical connections.
Applications:
Our sintered joints play an important role in many fields. They are primarily used in pressure, temperature, signal and other sensors to seal, insulate and take the stress of signal transmission. Besides, they also make sure the tightness of signal transmission.
With features of high temperature resistance, low temperature resistance, corrosion resistance, pressure resistance and so on, the sintered joints are widely used in many fields, such as agricultural irrigation system, fire alarms safety system, etc.
Therefore, our sintered joints have been highly trusted and praised by our customers all over the world.
Customization:
Hermetic Feedthrough Connectors by SSCore
Brand Name: SSCore
Place of Origin: ShenZheng
Minimum Order Quantity: 5 pcs
Price: 10 - 60 $
Packaging Details: vacuum package
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Connector Type: Hermetic Feedthrough Connectors, Hermetic Seal Connectors, Hermetic Feedthrough Terminals, Hermetic Feedthrough Adapters
Material: 45 Steel
Mounting Type: Mounting Screw
Temperature Rating: -70°C To 300°C.
Manufacturer: SSCore
