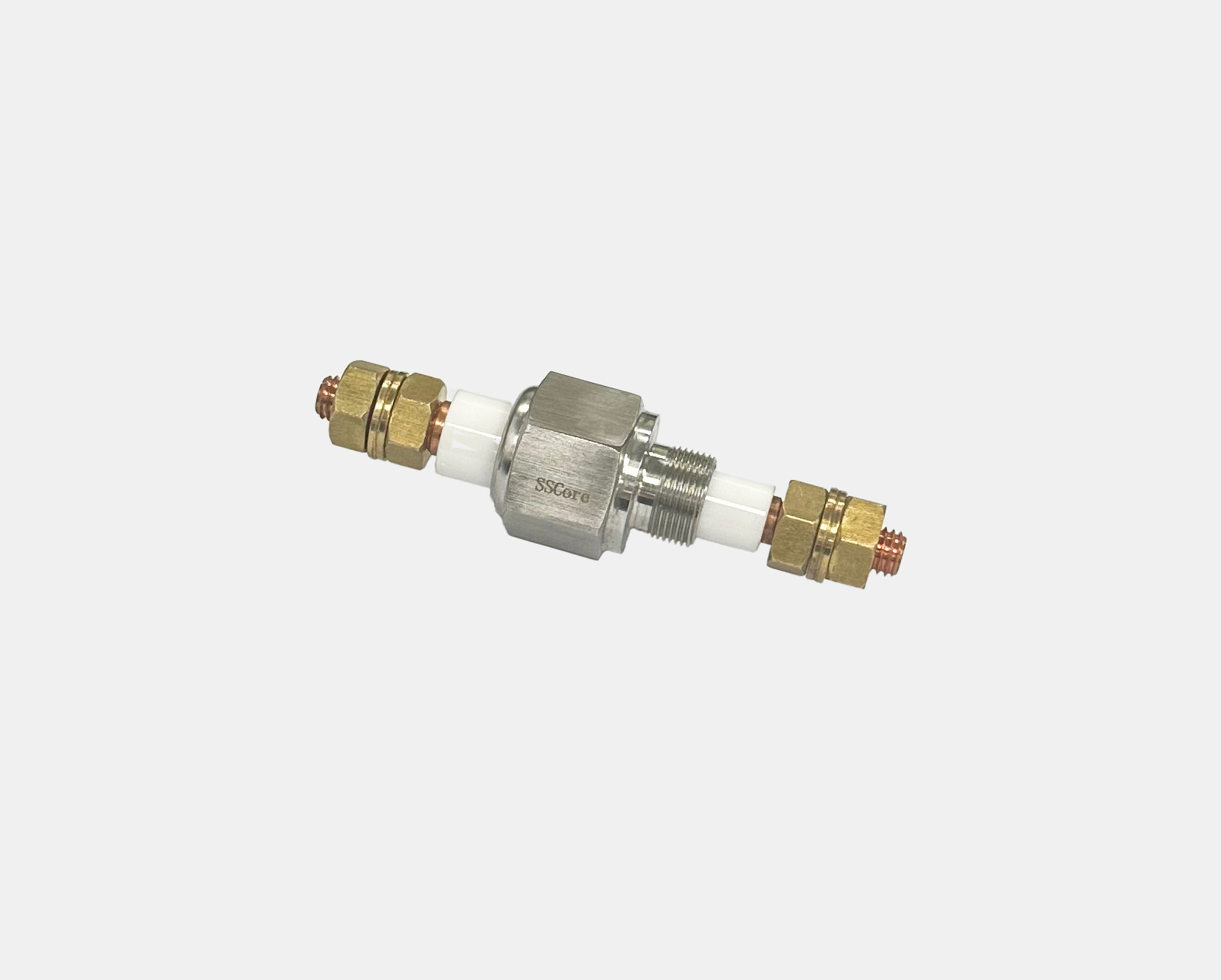

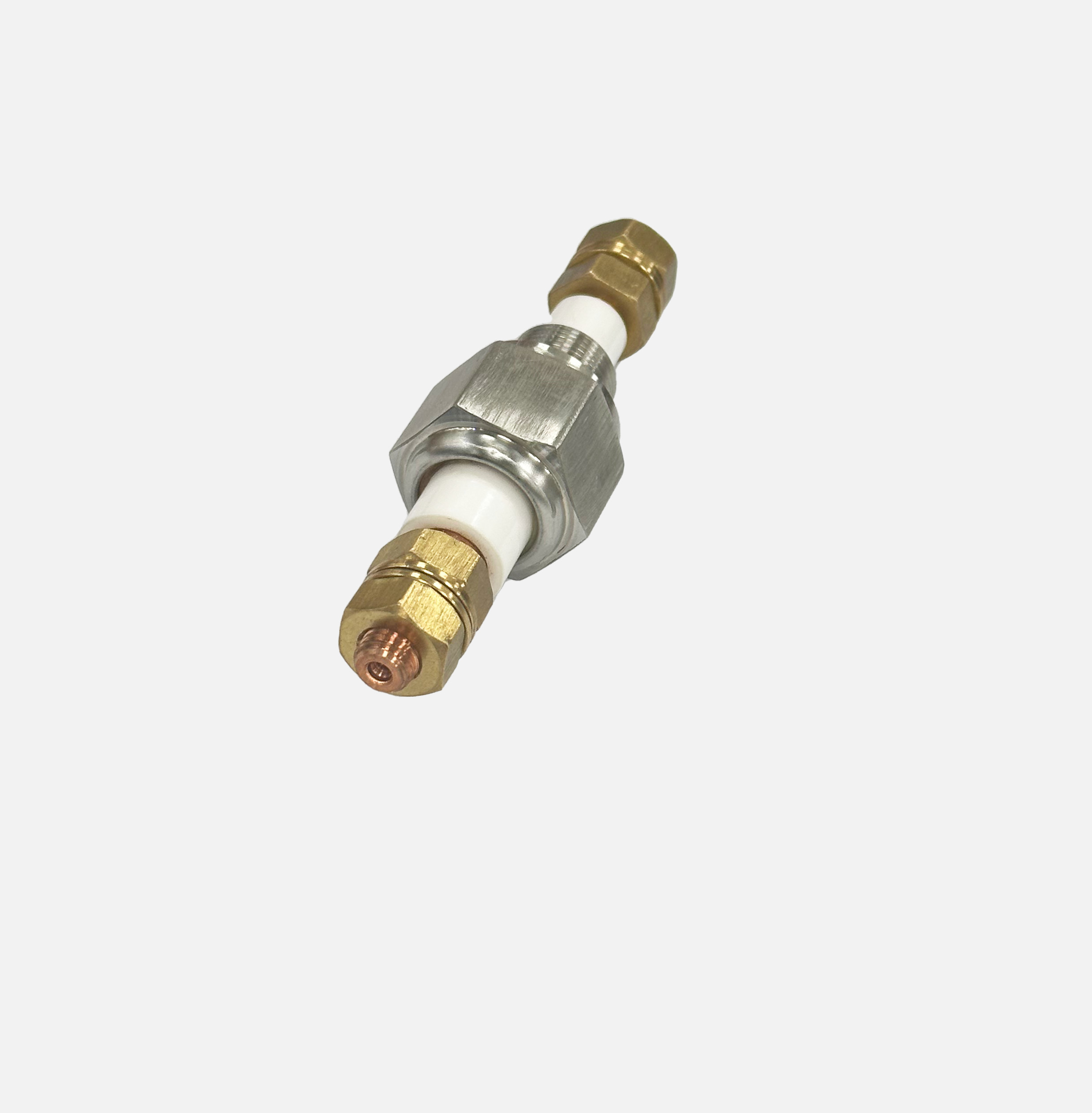

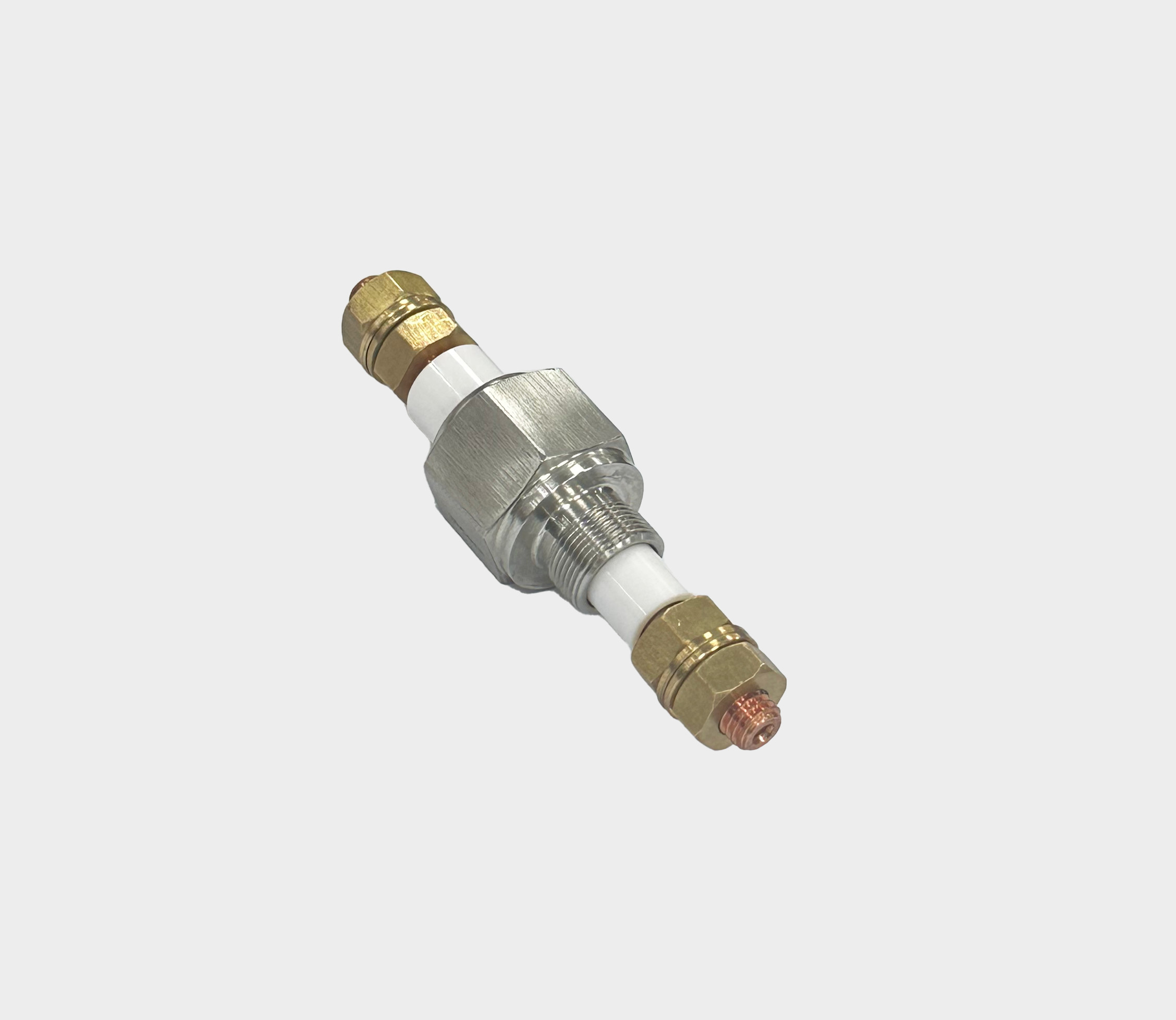

220V-600V Hermetic Seal Connectors With Glass Insulation Material
Product Description:
We can design and manufacture various types of sintered seal terminals to meet customers' needs. The performance parameters of our products are listed below :
1. Material: 45 Steel
2. Hi-pot: 3000v leak current ≤ 0.5MA
3. IR: 1000V IR > 1000MΩ
4. Leak Test: 4MPa N2 pressure No leak
5. Burst Test: 5MPa No leak
6. Operating Temperature Range: -70°C - 300°C
Features:
- Product Name: Hermetic Seal Connectors
- Surface treatment: Electroless Nickel
- Connector Style: Mounting Screw
- Current Rating: 100A - 300A
- Operating Temperature: -70°C To +300°C
- Material: 45 Steel
- Features:
- Hermetic Connector Assemblies
- Hermetic Connectors
- Hermetic Connector Systems
- Hermetic Connectors
Technical Parameters:
The products of our company are all environmentally friendly – the electroless nickel plating method is used and the coating thickness is 3-5 microns. This method does not contain any harmful substances such as mercury, lead, cadmium and hexavalent chromium, which fully comply with the EU standard and are tested and certified by SGS. In addition, it also serves as an electrical connection.
Applications:
Electronic connectors play an important part in the world of ultra-high power equipment. They are used to serve a variety of functions, including sealing, insulation and resistance to voltage, in order to ensure a secure and reliable power connection.
The essential design of these connectors is lightweight yet durable so that the power is transmitted securely and efficiently. Furthermore, they enable reliable communication between electrical devices, allowing currents to be monitored and controlled without disturbances. This makes them highly beneficial for use in the industrial, military and aerospace fields.
Customization:
Hermetic Seal Connectors
Brand Name: SSCore
Place of Origin: ShenZheng
Minimum Order Quantity: 5 pcs
Price: 60-300$
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Surface treatment: Electroless Nickel
Manufacturer: SSCore
Operating Temperature: -70°C To +300°C
Insulation Material: Glass
Current Rating: 100A - 300A
SSCore provides custom-made Hermetic Connector Assemblies, Hermetic Connector Systems and Hermetic Connectors. Our products offer unbeatable performance and reliability in extreme temperatures, making them ideal for aerospace, medical, military and commercial applications. With our high quality materials and advanced manufacturing processes, we ensure quality and reliability for our customers.
Support and Services:
Hermetic Seal Connectors Technical Support and Service
We offer comprehensive technical support and service for our Hermetic Seal Connectors. Our team of qualified engineers is available to answer any questions or concerns you may have about our products. We also provide detailed installation instructions and troubleshooting guides. Additionally, we offer repair and replacement services as needed.
Additionally, we offer a variety of product maintenance and inspection services. These include routine maintenance, performance testing, and failure analysis. Our team of experts is also available to provide technical advice and support for any of our Hermetic Seal Connectors.
If you have any questions or need assistance with our Hermetic Seal Connectors, please do not hesitate to contact us. We look forward to helping you with all of your technical support and service needs.
