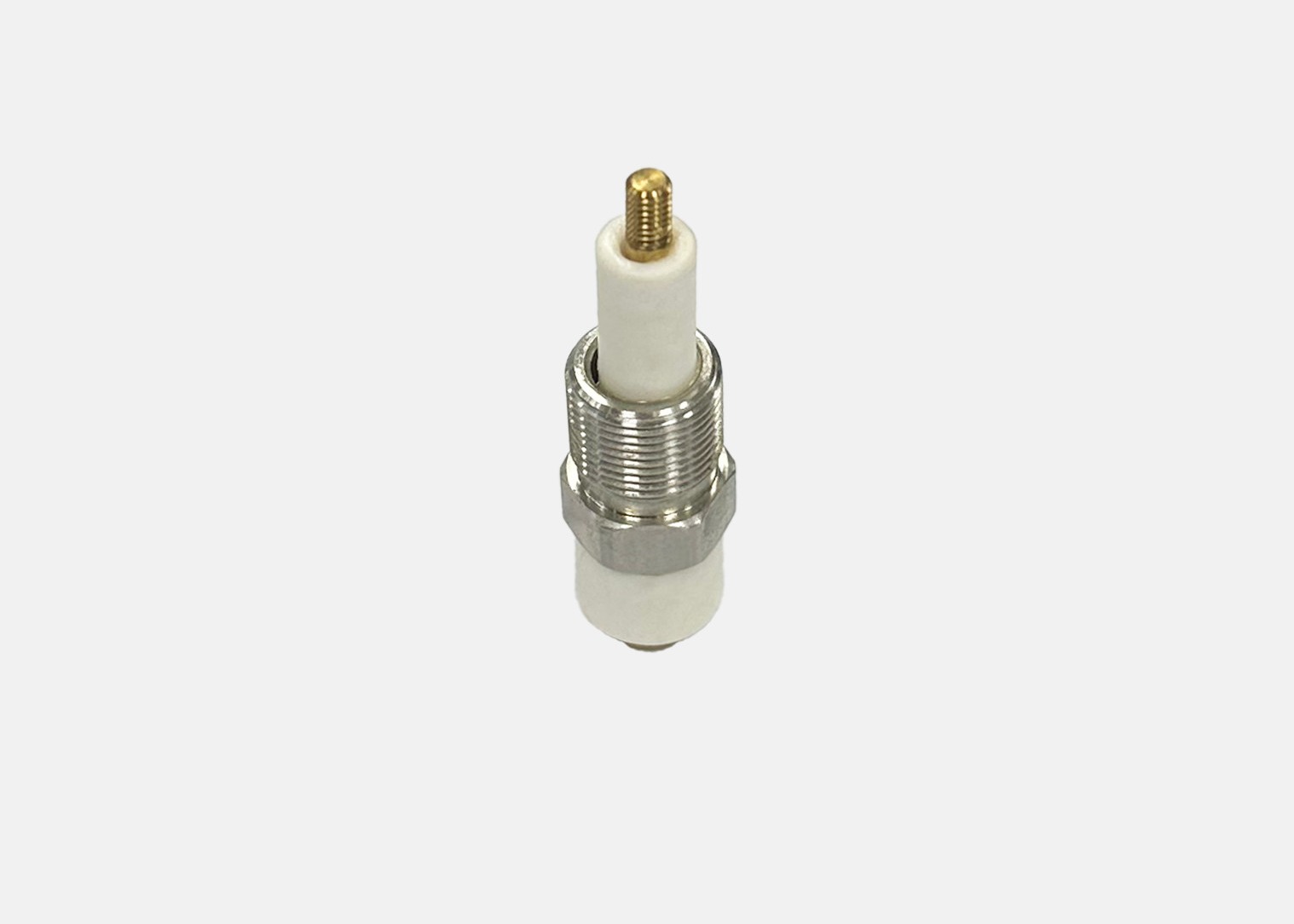

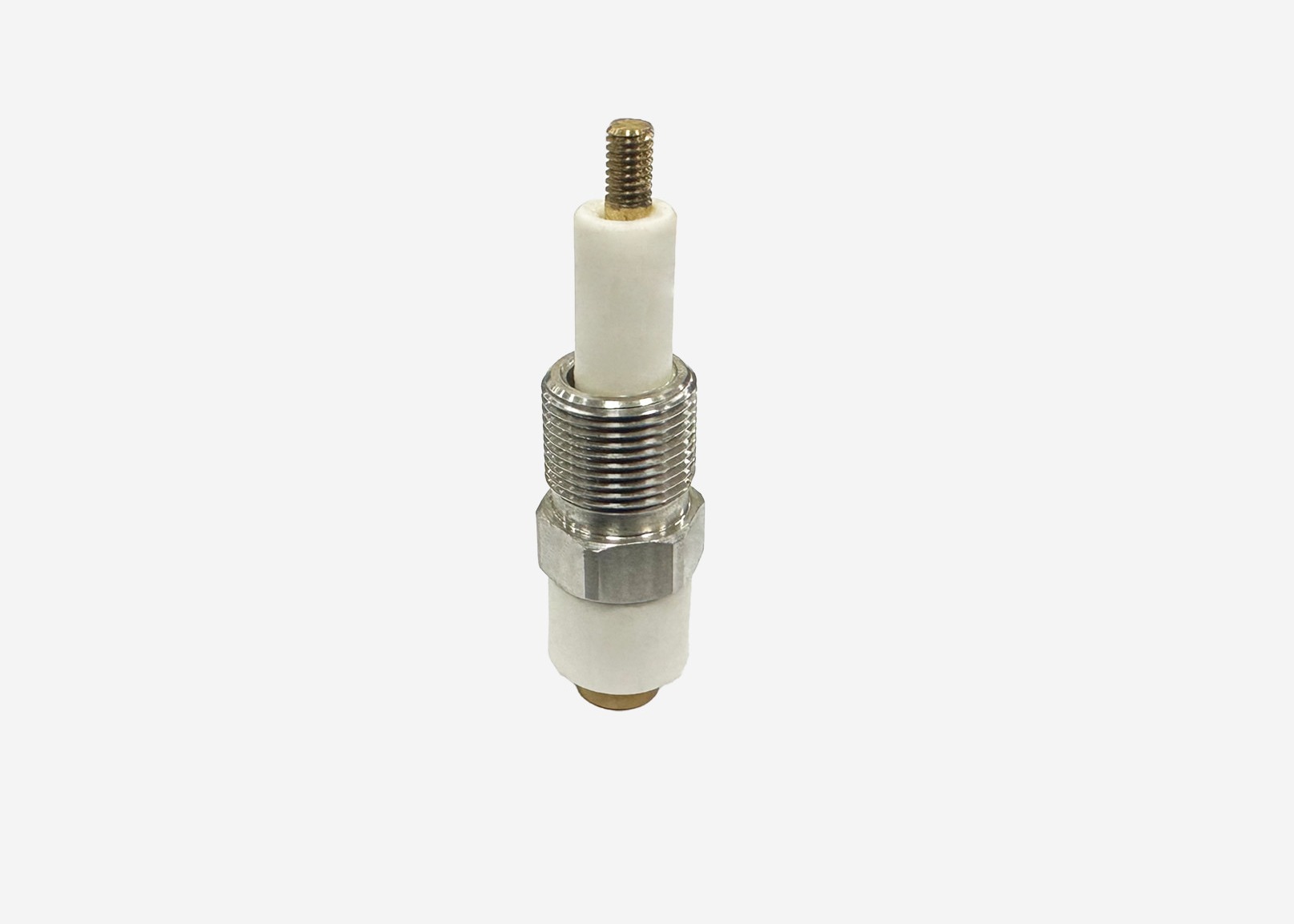

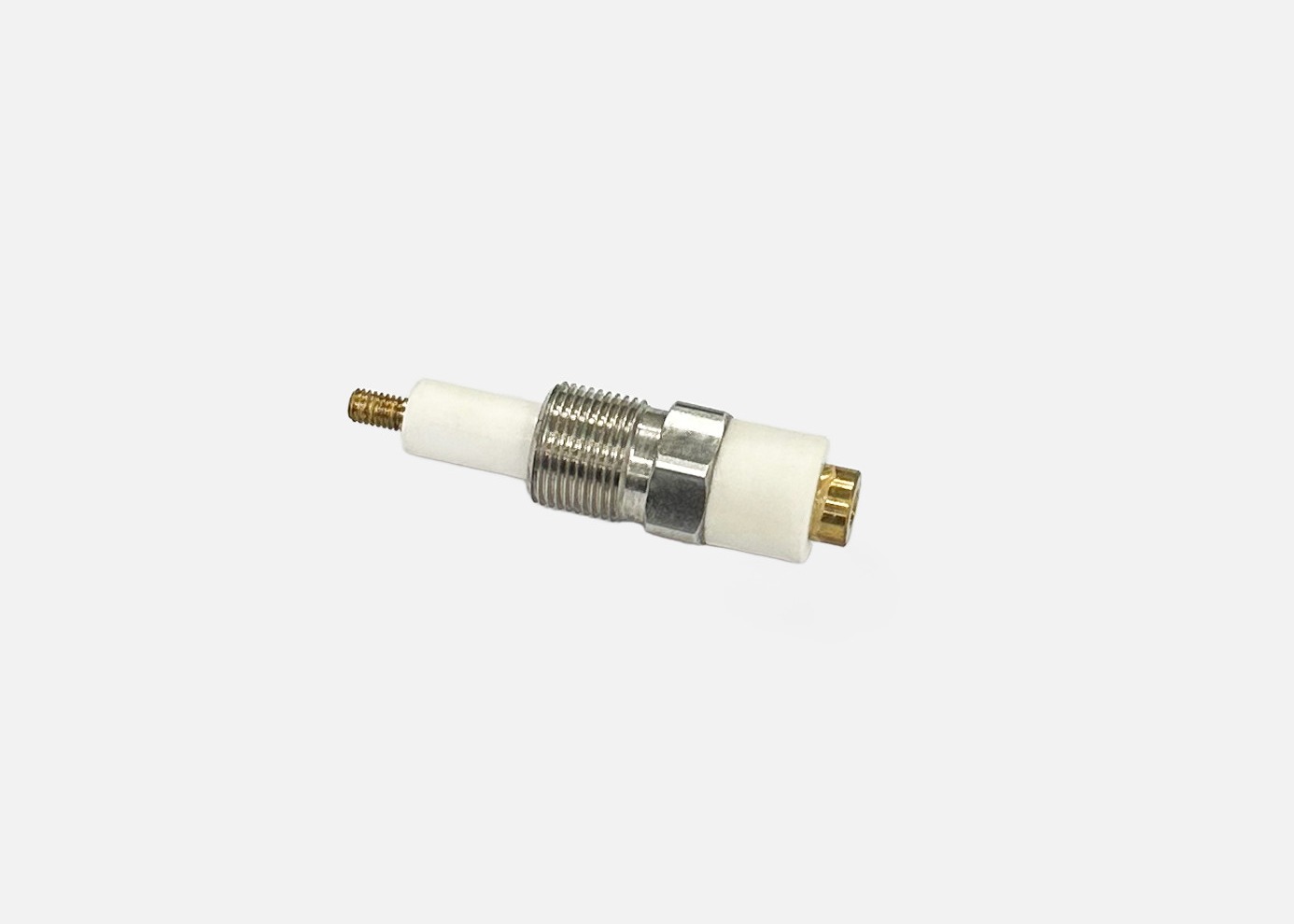

220V-600V Hermetic Sealing Connector Components By SSCore -70°C To +300°C
Product Description:
We can offer established solutions for customers with special requirements. Our sintered seal terminals come with the following features:
Materials: 45 Steel
Hi-pot Tested: 3000v leak current is less than or equal to 0.5MA
Insulation Resistance: 1000V insulation resistance goes beyond 1000MΩ
Leak Tested: 100% pressure tested under 4MPa Nitrogen environment for no leakage
Burst Tested: 100% pressure tested under 5MPa environment for no leakage
Operating Temperature Range: -70°C to 300°C
Features:
Our company's products are all environmentally friendly and use an electroless nickel plating method. The coating thickness is between 3-5 microns. In particular, our nickel coating does not contain Mercury, Lead, Cadmium, and Hexavalent Chromium - all of which are very harmful substances. We proudly adhere to EU standards and assert that our coating has undergone SGS environmental testing with satisfactory results. In addition, it provides the role for electrical connections.
Technical Parameters:
| Product Attribute |
Specification |
| Current Rating |
100A - 300A |
| Manufacturer |
SSCore |
| Surface Treatment |
Electroless Nickel |
| Material |
45 Steel |
| Voltage Rating |
220V - 600V |
| Operating Temperature |
-70°C To +300°C |
| Connector Style |
Mounting Screw |
| Insulation Material |
Glass |
Applications:
The electronic connector is an important device in many electronic systems, especially in ultra-high-power equipment. It is designed to play a crucial role in the connection of power supply, by providing sealing, insulation as well as voltage resistance.
This connector is usually designed with specialized components, that enable its capability to withstand high voltage and current, while providing secure connection between components. In addition, it can also be used for power connection between electrical components, in order to protect the circuit from damage.
In summary, the electronic connector is an important device that provides essential functions such as insulation, voltage resistance and power connection, especially in the ultra-high-power equipment.
Customization:
Hermetic Seal Connectors
Brand Name: SSCore
Place of Origin: ShenZheng
Minimum Order Quantity: 5 pcs
Price: 60-300$
Packaging Details: Cato packing
Delivery Time: 7 - 14 work days
Payment Terms: L/C, D/A, T/T, D/P
Supply Ability: 50w pieces a month
Surface treatment: Electroless Nickel
Voltage Rating: 220V - 600V
Operating Temperature: -70°C To +300°C
Insulation Material: Glass
Manufacturer: SSCore
Hermetic Connector Systems
SSCore is committed to providing the highest quality Hermetic Connector Systems for your hermetic sealing applications. Our Hermetic Connector Systems are designed to meet the toughest environmental and electrical requirements while providing maximum reliability and performance. We offer a wide range of hermetic connector assemblies, including Hermetic Sealing Connector Systems, and Hermetic Connector Assemblies.
We are proud to offer our customers high quality products and services that are designed to meet their needs. Our products are designed to meet the highest standards of quality and performance, and our customer service team is available to answer any questions or concerns you may have.
Support and Services:
Hermetic Seal Connectors Technical Support and Service
We offer dedicated technical support and service for our Hermetic Seal Connectors products. Our team of experienced engineers and technicians is available to provide you with support, troubleshooting, and maintenance services for all of our hermetic sealing products.
We can also provide customized designs and engineering services to meet your specific needs or applications. Our engineering team can help you choose the right hermetic sealing solution for your needs, and provide expert guidance on the installation and use of our hermetic seal connectors.
Our technical support and service team is available to answer any of your questions or concerns about our hermetic sealing products. Contact us today to learn more about how we can help you get the most out of your hermetic seal connectors.
