Home /Products/Hermetically Sealed Terminal/ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal

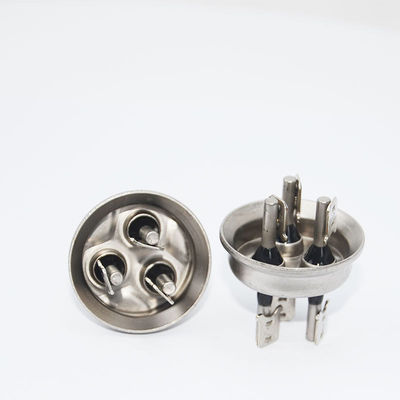

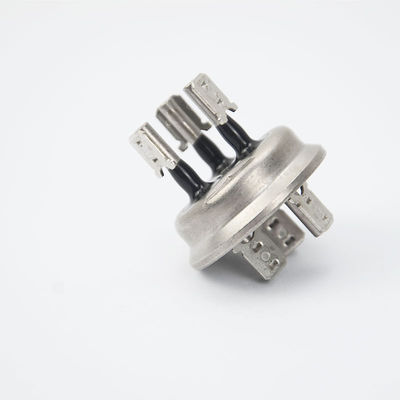

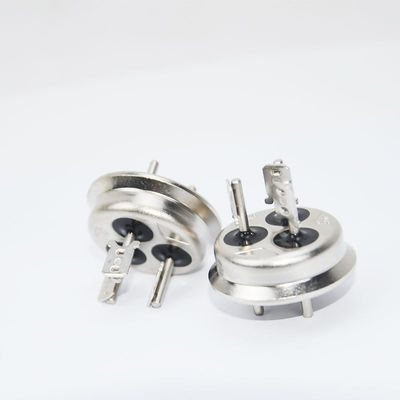

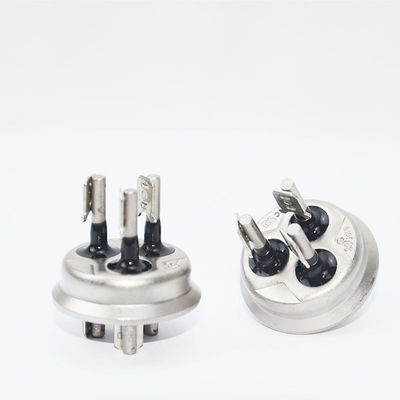

ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal

5pcs
MOQ
¥ 5.00 10PCS minimum batch ¥ 4.00 500-49999PCS ¥ 3.00 ≥50000PCS
Price
ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal
Features Gallery Product Description Request A Quote
Features
Specifications
High Insulation Performance: Static Test At 500VDC, Insulation Greater Than 5000MΩ
High Sealing Performance: 2.5MPa Does Not Leak
High Voltage Resistance: ≥2000VAC, Leakage Current ≤0.5mA
Corrosion Resistance: Refer To The Salt Spray Standard GB/T2423.17, Which Can Reach The Level Of 8 Or Above
Resistant To Various Refrigerant And Refrigerant Oil: R114a,R410a,R22 And CO2 Refrigerant
Thermal Shock Resistance: It Can Maintain Normal Operation In The Environment Of Minus 40℃ To 300℃
Operating Voltage: 72V-810V
Highlight:

ISO Hermetically Sealed Terminal

,

72V Sintered Seal Terminal

,

ISO Sintered Seal Terminal
Basic Infomation
Place of Origin: ShenZheng
Brand Name: SSCore
Certification: ISO16949
Model Number: SC-1-88A
Payment & Shipping Terms
Packaging Details: Cato package 9*9
Delivery Time: 7-14 work days
Payment Terms: L/C, D/A, T/T
Supply Ability: 12000 per day
Product Description

Binding Posts For Household Air Three Pin Five Pin Glass-Metal Sintering

The sintered seal terminal is mainly used in the 72V-810V compressor of automobile air conditioning, and plays the role of sealing, insulating, voltage and pressure resistant electrical connection

ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal 0ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal 1ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal 2ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal 3ISO Hermetically Sealed Terminal Voltage 72V Sintered Seal Terminal 4
